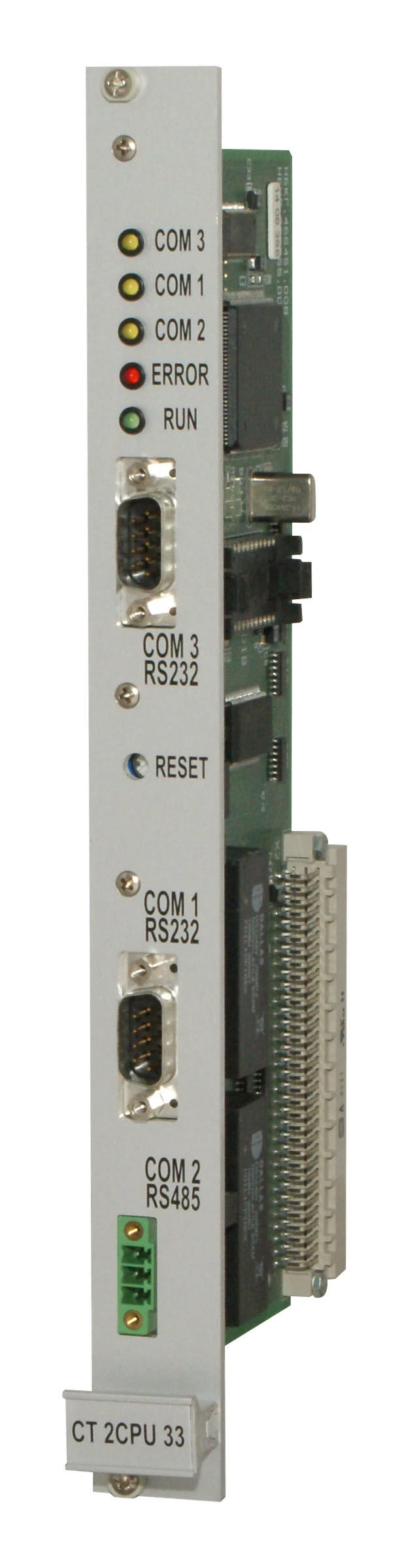

KCA-02 controller. Module CT2CPU33

Controllers KSA-02, are designed to collect and process analogue and discrete signals from sensors and alarms, to issue control actions according to specified algorithms on executive devices as part of local/distributed control systems of technological processes. The CT2CPU33 processor module is designed for use in the main processors of KCA-02 controllers. The CT2CPU33 module is implemented on two processors - main and I/O. The main processor executes the working programme algorithm and serves the modules within the main processor via the system bus, as well as external devices via two RS-485/RS-232 interfaces. The I/O processor supports the exchange protocols via the RS-232 service interface. On the service interface is connected to a PC with installed design system Scorpio5
