Detection device UDBG-11R

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Designed for continuous measurement of the ambient dose equivalent rate of photon radiation and performing the function of the primary measuring converter of signals coming from the detection unit, conversion of the measurement results into a value in floating point format

Specifications

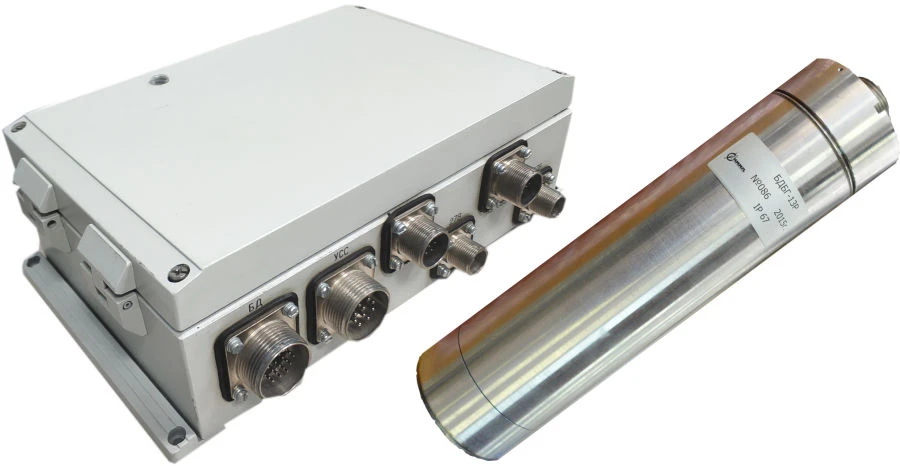

Structure Detection unit BDBG-13R; Controller unit BUP-39P.

Number of interfaces RS-485/422/232 1 pc

Number of channels 1 pc

Atmosphere type I

Degree of protection (IP) IP68 (Detection unit BDBG-13R); IP55 (Controller unit BUP-39P).

EMC group III

Seismic resistance category II

Safety class according to NP-001 4?

Weight 4.3 kg

Overall dimensions (H x W x D), mm 65, Height 255 (Detection unit BDBG-13R); 275x180x85 (Controller unit BUP-39P).

Operating temperature range -30...50 °C

Basic relative error of measurement 25 %

Measurement range of ambient dose equivalent rate Sv/h 1,0x10E-7 - 1,0x10E+2

Power consumption 2.7

Number of measuring channels 1 pc

Interface type RS-485

Power supply voltage 27 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
