Multifunctional analogue and discrete I/O device. 8 discrete I/O channels, 2 differential or

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

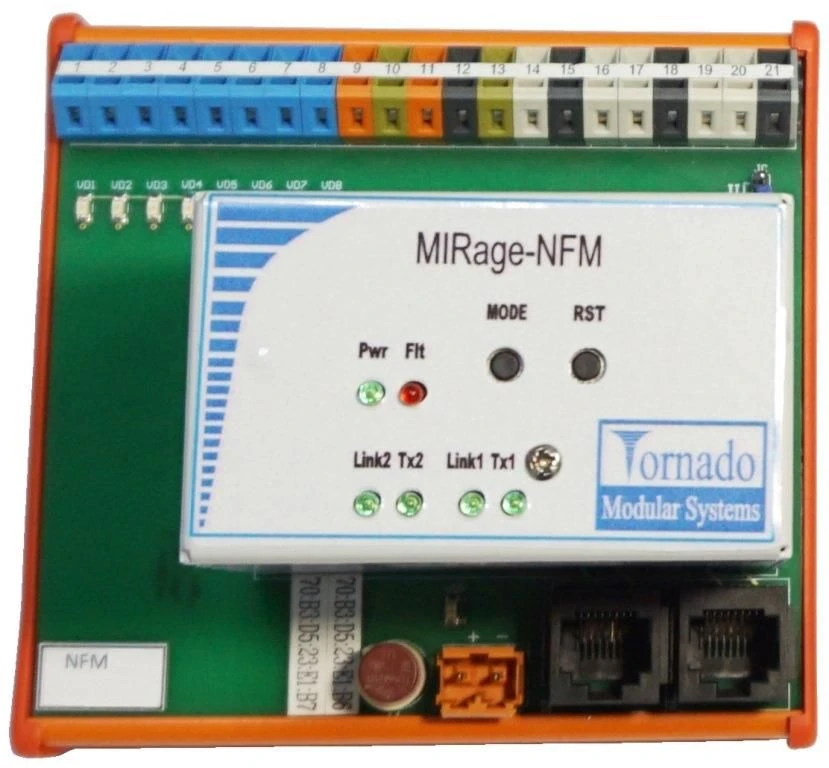

The MIRage-NFM devices are multifunctional devices for input/output of analogue and discrete signals. They have 8 discrete input/output (DIO) channels, 2 differential or 4 unipolar analogue measurement (AI) input channels and 1 analogue output (AO) channel. The DCs included in the devices can be individually assigned to either input (DI) or output (DO) channels. The channel control algorithm is software downloadable via Ethernet. The communication protocol is defined by the user in the control algorithm. MIRage-NFM devices are designed to create automated process control systems (APCS) in various industries.

Specifications

External supply voltage (+/- 15%) 24 V

Operating temperature range -25...70 °C

Wago terminal block, conductor cross-section up to 2.5 mm2

Weight, not more 450 g

Overall dimensions 114x108x111 mm

Galvanic insulation Group

Data exchange protocol Modbus TCP/UDP slave

Data transfer rate 100

Interface type Ethernet 10/100BaseTX - 2 channels

Mechanical design DIN rail mounting

Request response time at 100 Mbit network speed, no more than 2

Consumption current without taking into account sensors, max. 115 mA

Number of input measurement channels 4 pc

Number of measurement output channels 1 pc

Number of discrete I/O channels 8 pc

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
