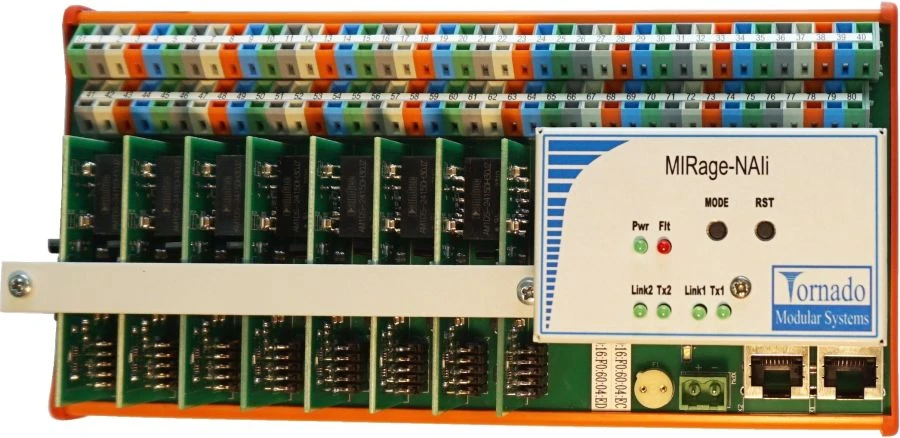

Analogue input device. 8 unified current signals, individual galvanic isolation (MIRage-NAIi-A)

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Analogue input device. 8 unified signals of thermocouples, individual galvanic isolation (MIRage-NAIi-T) Analogue input device. 8 unified signals for resistance thermistors, individual galvanic isolation, sensor power supply (M 59402

The MIRage-NAIi-A devices are designed to input analogue DC signals from sensors with active current output and convert them into digital form. The devices are designed to measure unified current values and transmit the measured values over twisted-pair cable via a redundant Ethernet 10/100 twisted-pair cable interface using the ModBus protocol. The MIRage-NAIi-A devices have 8 differential input measurement channels (IRs). The ICs are individually galvanically isolated from each other and from the system part. MIRage-NAIi-A devices are designed to create automated process control systems (APCS) in various industries.

Technical Specifications

Number of measuring channels	8 pc
Interface type	Ethernet 10/100BaseTX - 2 channels
Request response time at 100 Mbit network speed, no more than	2
Data transfer rate	10
Data exchange protocol	Modbus TCP/UDP slave
External supply voltage (+/- 15%)	24 V
Consumption current without taking into account sensors, max.	110 mA
Galvanic insulation	Individual
Overall dimensions	216x108x111 mm
Weight, not more	700 g
Mechanical design	DIN rail mounting
Wago terminal block, conductor cross-section up to	2.5 mm2
Operating temperature range	-25...70 °C
Maximum current consumption	460 mA

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
