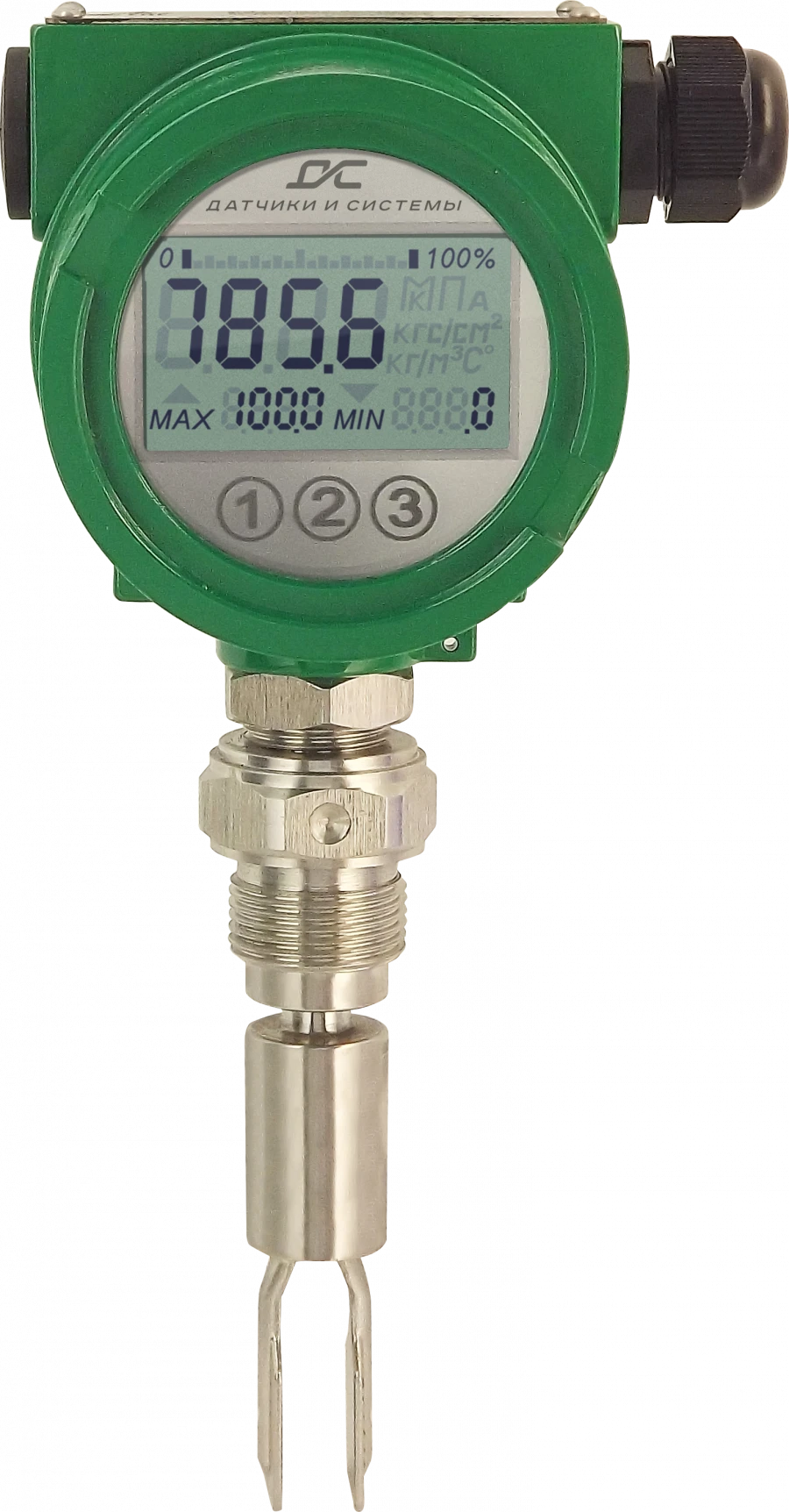

Density Meter 804

Designed for continuous measurement and conversion of liquids and gases density into electrical output signal as part of regulation and control systems of technological processes, as well as part of systems for measuring the quantity and quality of liquids and gases. It is used in gas and oil production, chemical and food industries. Equipped with RS-485 or USART digital interfaces and (or) 4-20 mA analogue DC interface. Density measurement range 0-160 kg/m³ for gases and 620-1630 kg/m³ for liquids at maximum working medium pressure up to 16 MPa and temperature from -70°C to +80°C. Provides measurement in viscous liquids with viscosity index not more than 100 mm²/s (in drilling muds). The body of the primary transducer is made of stainless steel of 12?18?10? and 44???? grades. Design - general industrial and explosion-proof with marks 804-Ex and 804, protection degree for the submersible part - IP68, for the body of the electronic unit - IP67. Interverification interval - 2 years.
