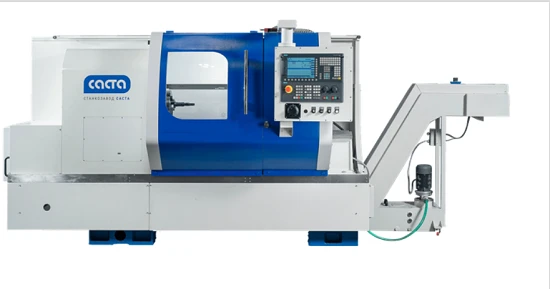

CNC lathe model CA700C40F4

CNC Metal Lathes

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

CNC lathe model CA800C40F4 CNC lathe model CA700C10F4 CNC lathe model CA800C20F4

Description

- Machine tool CA700C40F4 is designed for turning in the chuck and centres of parts with straight, stepped and curved profile.
- The range of spindle speed control allows machining of products both from ordinary ferrous and non-ferrous metals and from alloy steels.
- The rigid solid cast iron bed, artificially aged to relieve internal stresses, guarantees long-lasting stability of the machine's geometric accuracy.
- Wide prismatic and flat slideways, hardened to a depth of 1.5-2 mm to a hardness of 52HRC and ground, ensure high durability.
- The surfaces of the travelling units (carriage, tailstock) are scaled and coated with a special anti-friction coating for minimum wear and friction-free travelling.
- The all-metal spindle is assembled on high-precision angular-contact bearings (one twin in front and one in the rear) with reduced runout in axial and radial direction even under heavy cutting conditions.

Specifications

Type of product according to PP RF 616 Turning machining centers (single and multi-spindle)

Length 6393 mm

Height 1906 mm

Width without remote control/ with remote control 2690 mm

Weight 6300 kg

The largest diameter of the workpiece, to be mounted above the bed 700 mm

The largest diameter of the workpiece, to be machined above the slide 430 mm

Movement in the X axis (transverse movement of the slide) 425 mm

Z-axis travel (longitudinal movement of the slide) 3900 mm

X-axis travel speed (transverse movement of the slide), m/min 5

Z-axis travel speed (longitudinal movement of the slide) 10

Maximum speed spindle speed 1600

Maximum torque Fanuc: 1750/2187,5 Nm, Siemens: 2028/2535 Nm

Speed control Dual-range gearbox

Main engine power Fanuc: 22/26 kW Siemens: 17/20.4 kW

Spindle end ?11

Chuck diameter 400 (500, 630* optional)

Chuck type Mechanical (hydraulic* optional)

Bore diameter in the spindle for the bar 140 mm

Attachment of the turret tool VDI40

Number of tool slots 8 (4* optional)

Moving the tailstock quill 240 mm

Diameter of tailstock quill 120 mm

Tailstock quill taper Morse 6

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
