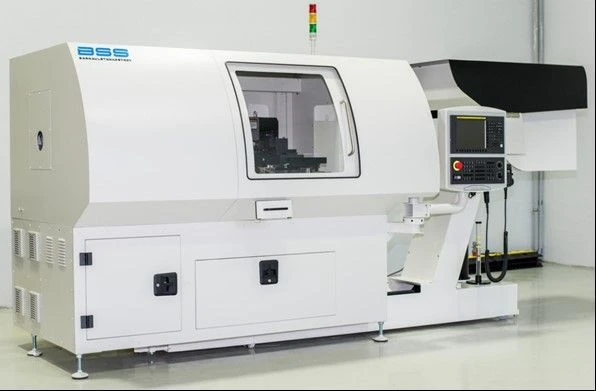

CNC Lathe Machine BSS.16.F3M for Precision Parts

Available for Import

CNC Lathe Machine BSS.16.F3M for High-Precision Small Parts Manufacturing

CNC Metal Lathes

Manufacturer: AGFZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

CNC lathe BSS.16.F3M, produced by LLC "Altai Geophysical Plant", is designed for manufacturing of small-sized parts of increased accuracy and is equipped with CNC system and the main elements of drives produced by "Fanuc". The machine has a possibility to use automatic feeding of the workpiece (bar) through the motor-spindle with diameter up to 42 mm. Machining is carried out by means of the automatic bar feeder included in the machine.

Linear motors provide higher precision (digital) movements of the work table and tool. Magnetic encoders provide the most accurate and most flexible control of angular and linear movements compared to optical and linear encoders. Composite material bed effectively absorbs temperature and mechanical effects, provides stable manufacturing accuracy better than steel and cast iron beds.

The Fanuc BiI 112S/15000 motor spindle is optimised for machining fragile ma...

Specifications

Height

1700 mm

Machine weight, not more

2400 kg

Width

1400 mm

Length

2100 mm

Type

CNC

Working table size, Z/X axis, mm

300/675 mm

Working air pressure in pneumatic system

0.6...0.7 MPa

X-axis drive force (S1 / S2 at 15 min) kN

1,8 / 4,5

Z-axis drive force (S1 / S2 at 15 min) kN

1,2 / 3

Parallelism of table movement along Z axis with respect to spindle rotation axis (GOST 13041-1-2017, point 5.2 G3): in plane a

10 µm / 15 µm

Perpendicularity control between spindle head and X-axis movement (GOST ISO 13041-1-2017, clause 5.2 G4).

15 µm

Maximum load on the X/Z axis bearing group of the work table. kN

4500 / 3000

Power consumed by the machine tool, not more

30 kW

Supply voltage

380V, 50Hz

Traversing in axis C, deg.

360°

Chuck diameter

169 mm

Maximum speed of accelerated travelling, X-axis, Z-axis, mm/min

5000

Machine continuous operation time

B1/B8 2100/900 MHz

Z-axis travel

300 mm

Moving in the X axis

300 mm

Spindle drive power

22 kW

Maximum spindle speed

15000

Maximum turning diameter

169 mm

Maximum weight of parts (fixtures) mounted on the table

75 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
