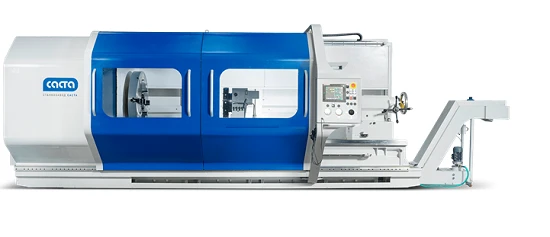

Modern Lathe Machine with Control System SA1400C100F2 for Precision Engineering

CNC Metal Lathes

Manufacturer: SASTA PJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Turning centre lathe of CA1400C200F2 model Turning centre lathe of CA1400C70F2 model Turning centre lathe of CA1400C20F2 model Turning centre lathe of CA1400C180F2 model Turning centre lathe of CA1400C80F2 model

Turning centre lathe of CA1400C160F2 model Turning centre lathe of CA1400C140F2 model Turning centre lathe of CA1400C10F2 model Lathe lathe with ESU model CA1400C60F2 Turning centre lathe of CA1400C30F2 model Turning centre lathe of CA1400C120F2 model

Description

- Machine tools with operational control system (OCS) are new generation machine tools, corresponding to modern tendencies of the world machine tool building.
They replace the traditional universal machine tools.
In comparison with universal machine tools, machine tools with operational control system provide higher productivity (1.5 - 2 times) and quality, and their maintenance does not require such a high qualification as when working on numerically controlled machine tools (CNC).
The use of servo feed drives and ball screws instead of mechanical kinematic links increases the accuracy and reliability of the machine tool and reduces operating costs.
Parts with complex geometry, including cones, spheres and threads can be machined without the use of complex fixtures and changeovers.
The machine can also be equipped with a turret with automatic tool change instead of a manual toolholder.

Specifications

Type of product according to PP RF 616

Turning and milling machining centers (with milling spindle)

Length

14183 mm

Width

3059 mm

Height

2200 mm

Weight

22000 kg

The largest diameter of the workpiece, to be mounted above the bed

1450 mm

The largest diameter of the workpiece, to be machined above the slide

1060 mm

Maximum weight installed part

8000 kg

Movement in the X axis (transverse movement of the slide)

625 mm

Z-axis travel (longitudinal movement of the slide)

9920 mm

Maximum speed spindle speed

750

Maximum torque constant / 30 min

4980/6225 Nm

Main engine power

30/37.5 kW

Spindle end

?15

Chuck diameter

1000 mm (500, 630, 800 * optional)

Chuck type

Mechanical (hydraulic* optional)

Spindle bore diameter

180 mm

Tool section of the turret tool (optional)

40x40 mm

Number of tool slots

4 mm

Moving the tailstock quill

275 mm

Diameter of tailstock quill

180 mm

Tailstock quill taper

Morse 6

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
