Available for Import

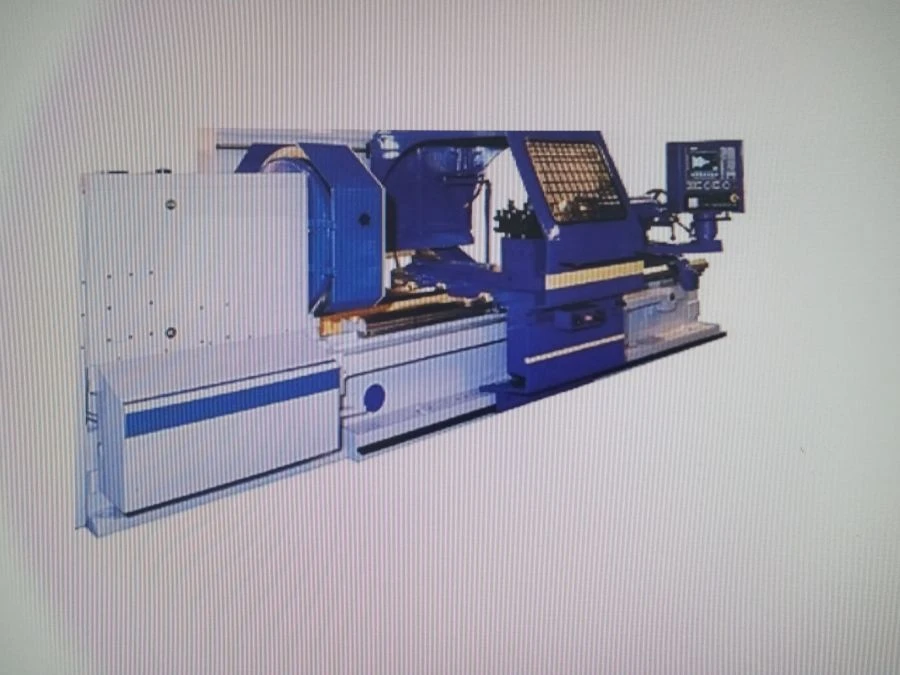

CNC Lathe Machine Model 1N65F3 for Precision Part Processing
Manufacturer:
RSZ LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
CNC lathe model 1N65F3 is designed for machining parts, including crankshafts with rectangular, stepped and curved profiles, as well as for threading. Technical characteristics and rigidity of the machine allow to fully use the possibilities of modern tools for machining both ferrous and non-ferrous metals. The machine is manufactured in explosion-proof version: special design of all motors; additional protection of all terminal boxes, harnesses, hoses, connectors; remote control of the machine; location of the electrical cabinet outside the installation area of the machine; presence of fireproof mixtures in the machine.
Specifications
Machine weight, not more
13100 kg
Height
2100 mm
Width
3000 mm
Length
7800 mm
Type
cnc lathe
Total power of electric motors installed on the machine tool
61 kW
Height of the tool to be mounted in the toolholder
40 mm
Maximum mass of the workpiece to be installed
8000 kg
Maximum length of the workpiece to be processed, not less than
3000 mm
The largest diameter of the workpiece to be machined above the slide, not less than
650 mm
The largest diameter of the workpiece mounted above the bed, not less than
1000 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
