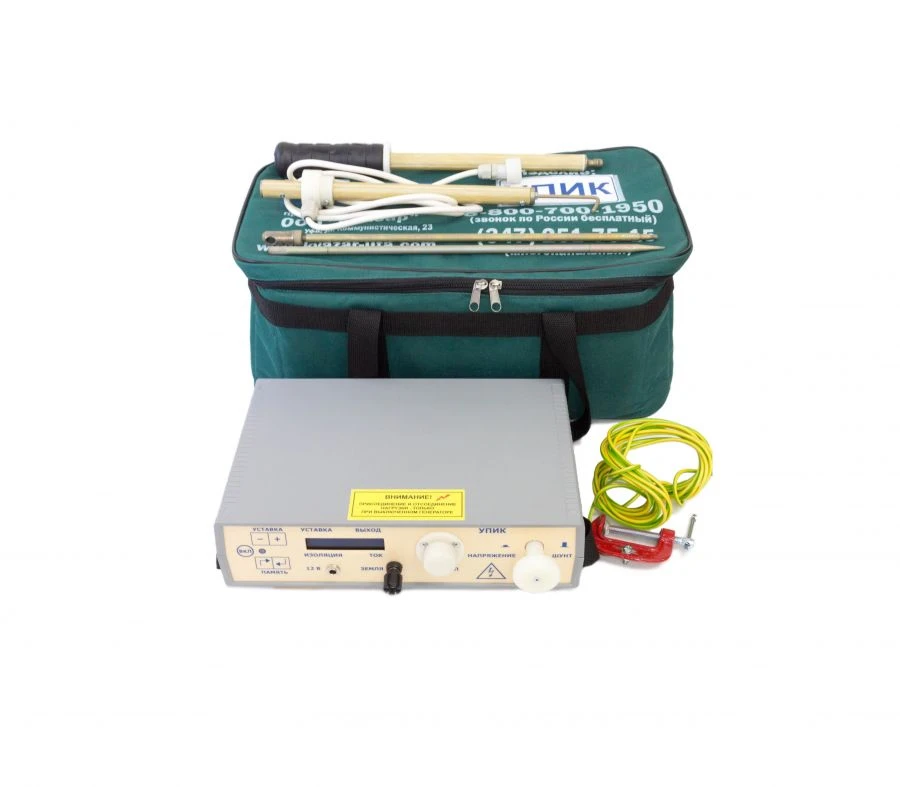

Cable insulation fault indicator UPIK

Analog Signal Conditioners

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The built-in pointer allows to supply to the investigated objects a specified DC voltage in the range from 1 kV to 15 kV and to determine the leakage current and cable insulation resistance at the selected test voltage relative to ground. The UPIK fault indicator has sufficient power to test the insulation of long power cables (several kilometres) with leakage resistance up to 1mA at test voltages up to 15kV. The UPIC can be operated in both field and laboratory conditions. OBJECTIVITY checking of insulation integrity against earth in installations with rated voltage from 220 V to 15 kV; determination of cable damage type ("Floating breakdown", "Short circuit"); finding the defective cable (directional identification); control of newly laid lines; measurement of load resistance at different values of voltage on it.

Technical Specifications

Output voltage, stabilised: - idle, not less, kV	15±5%
Output voltage is stabilised, has positive polarity with respect to the ground circuit and can be set in steps	1÷15
Time for setting the maximum test voltage of 15 kV on a cable with a capacitance to ground of up to 1 µF is, no more than	10
Time of residual charge removal after measurement at capacitance in the line to ground up to 1 µF is, no more than	10
Determination range of leakage current in the circuit under test, µA	0÷5000
Calculation of the total resistance of the examined insulation to earth	Automatic

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
