Automatic station for monitoring and correction of parameters of lubricating-cooling liquid

Hydraulic & Pneumatic Regulators

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

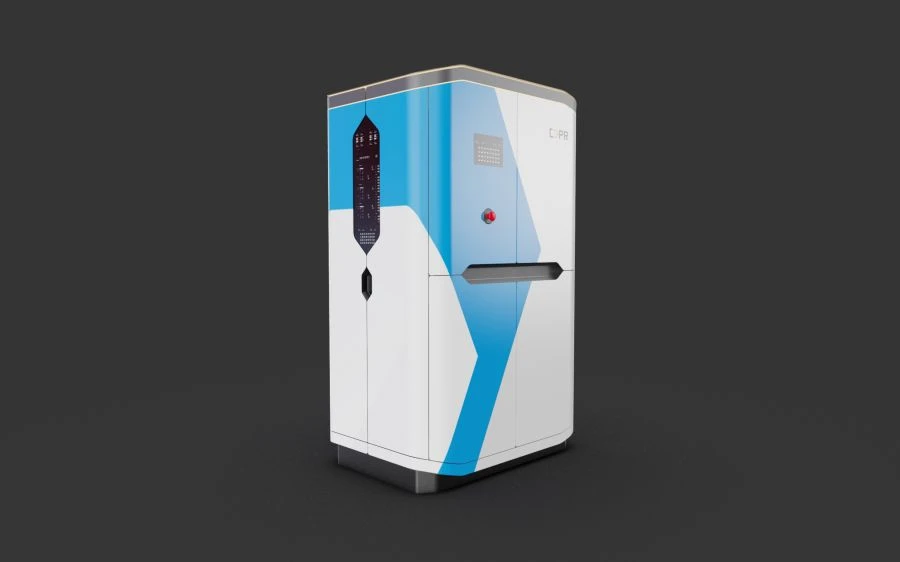

Automatic station for monitoring and correction of coolant parameters solves such tasks as measurement of key coolant parameters (concentration, acidity, hardness, temperature), correction of key parameters, preparation and addition of fresh emulsion, coolant filtration, water treatment, data storage and visualisation. The station is connected to a group of metalworking machines up to 10 units and monitors and corrects coolant parameters in an autonomous mode. The equipment is designed as a set of various subsystems united in a metal case. For ease of movement it is equipped with special castors-wheels.

Technical Specifications

Weight	750 kg
Size	14001800900 mm
Measurement interval for salt content, mg/L	0...100
Voltage	380 V
Type of product according to PP RF 616	Instruments and other instruments for measurement, control and testing
Communication protocols	Web-server, MySQL, OPC UA ,Modbus , MQTT, OwenCloud, HTTP
Data exchange protocols	Modbus (RTU, ASCII, TCP), OVEN, OPC UA (Server), SNMP (Manager/Agent)
Communication interfaces	Ethernet, 3×RS-485, 2×RS-232, USB Host, USB Device, SD-card
Specific conductivity measurement interval	0-200 µS/cm
Temperature measurement interval	0...100 °C
Concentration measurement interval	0...90 %
pH measurement interval	0...15

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
