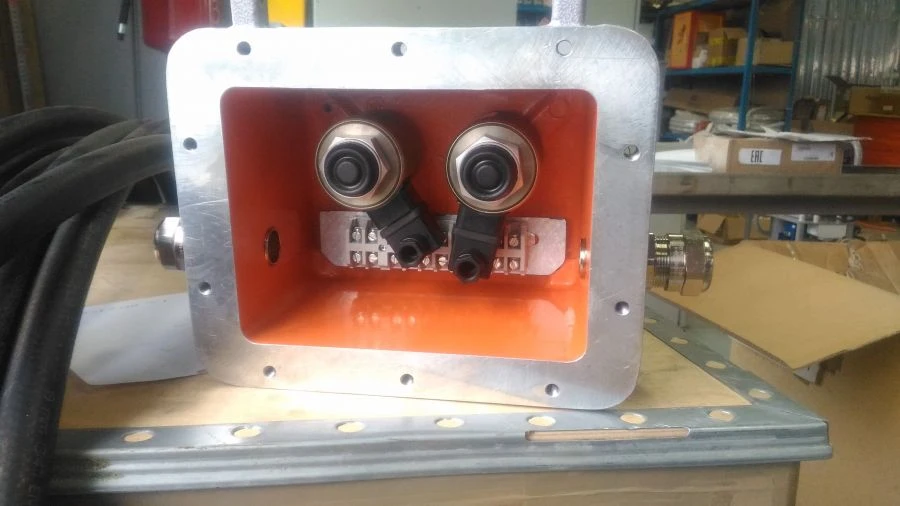

Electropneumatic control module EPMU

1. Purpose: EPMU is designed for remote and local (manual) control of pneumatic and pneumohydraulic actuator at opening and closing of ball valves DN 150 - 1400 mm. Control pressure of working medium from 0,6 to 16,0 MPa.
2. Description: EPMU is supplied with compressed air with technical characteristics corresponding to class 5 of GOST 17433 - 80 or purified natural gas according to OST 51.40 - 93.
EPMU is designed for application in potentially explosive zones of class 1 and 2 (GOST 30852.9, GOST IEC 60079-10-1), categories IIA and IIB (GOST 30852.11, GOST IEC 60079-20-1) and temperature classes T1, T2, T3 and T4 (GOST 30852.5, GOST R IEC 60079-20-1).
3. parameter name/value: -- for EPMU-01; -- for EPMU-10:
Diameter DN of the ball valve, mm:
EPMU-01/ 50-100;
EPMU-10 150-1400;
Supply pressure, MPa:
EPMU-01/ 1-10;
EPMU-10 0,6-16 ;
Valve DN diameter, mm:
EPMU-01/ 1;
EPMU-107-9;
Explosion protection marking:
EPMU-01/....
