Floor collector node for water supply system "Pulsar"

Hydraulic & Pneumatic Regulators

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

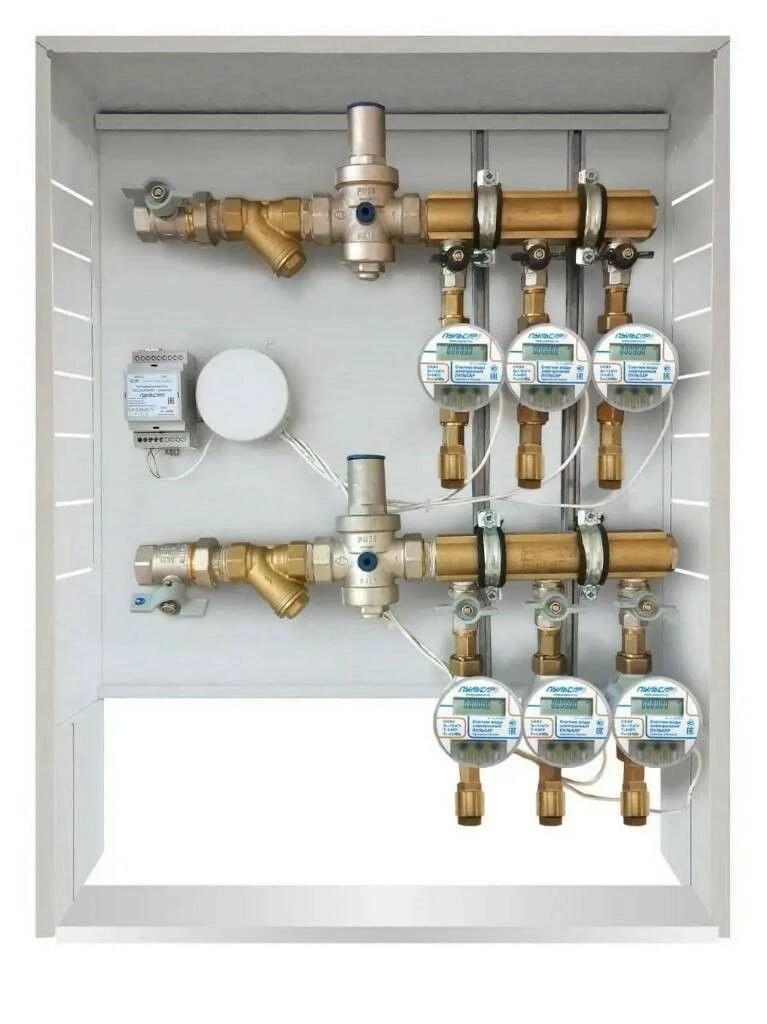

Collector units "Pulsar" (hereinafter - products) are designed for distribution of cold and hot water flow and organisation of water consumption accounting. Products are designed for installation in multi-storey and individual residential buildings, administrative, public and industrial buildings and structures. The products can be used both for creating hot and cold water supply systems in buildings under construction and for modernising water supply systems in existing and operating buildings. The products are designed for tapping into the pipeline.

Possible designs:
-Different regulating, shut-off and balancing valves;
-Left or right connection;
-Different inlet and outlet groups;
-Different number of bends: from 2 to 16;
-Different DNs of collector units;
-Different material of manufacture: brass, carbon or stainless steel;
-Different design of emergency fittings;
-The possibility of installation in internal and external cabinets.

Specifications

Weight 1.8...41 kg

Type Other tools and instruments for measurement, inspection and testing

Voltage 220?

Size from 400x300x110mm to 1600x800x150mm

Type of product according to PP RF 616 Other tools and instruments for measurement, inspection and testing

Number of bends 1-13+

Weight depending on version 1.8...41 kg

Dimensions of the box, depending on version from 400x300x110mm to 1600x800x150mm

Rated working pressure 1 MPa

Test pressure 1.6 MPa

Minimum ambient temperature 5 °C

Maximum ambient temperature SBVVBG °C

Operating medium water

Maximum medium temperature 95 °C

Sealing of threaded connections (depending on order) anaerobic sealant, fumed tape, sanitary tape and paste

Type of product according to PP RF 616 Other tools and instruments for measurement, inspection and testing

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Voltage 220 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
