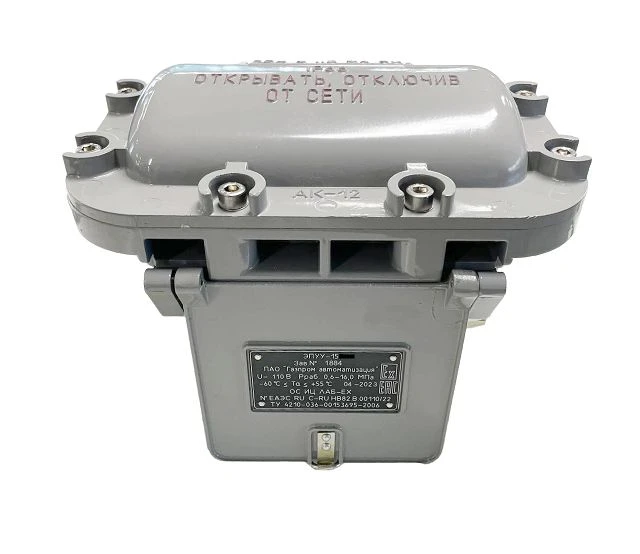

Control unit EFUU-15

The unit is designed for remote and local (manual) control of opening and closing operations of ball valves DN from 50 to 1400 mm with pneumatic and pneumohydraulic actuator. Control pressure of working medium from 0,6 to 16,0 MPa (from 6 to 160 kgf/cm2). Main technical characteristics: Explosion protection marking - 1Ex d IIB T4 Gb, Control signal voltage - 24 V, Power consumed by one electromagnet at rated voltage of input signal and ambient temperature - not more than 20 V, Operating temperature range - from - 60 0C to + 55 0C, Weight - 10,5 kg, Average life - not less than 10 000 cycles, Overall dimensions - 258?205?225 mm
