Available for Import

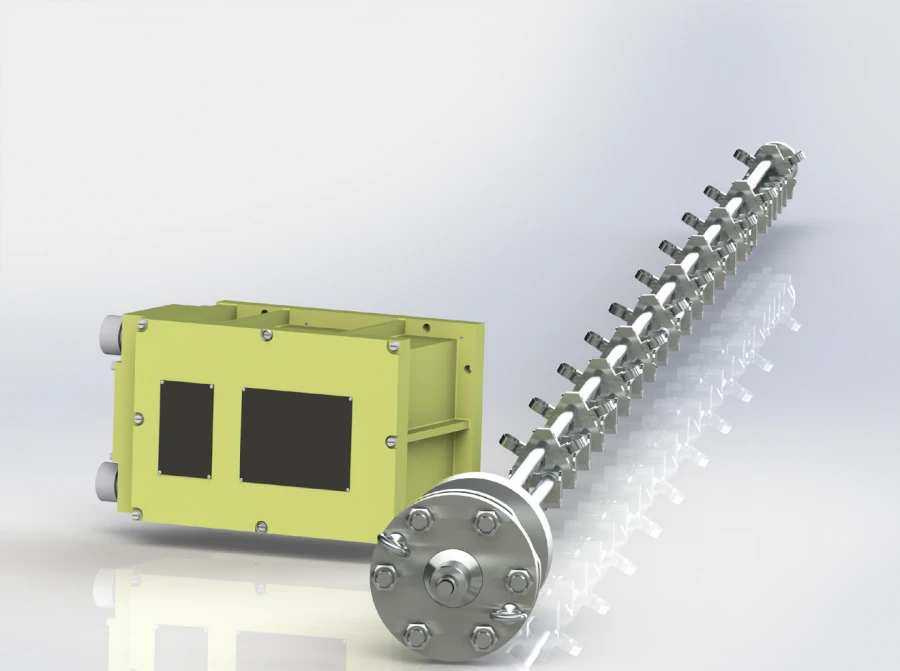

Analogue-discrete acoustic level gauges ADAU-1M

Level Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Analogue-discrete acoustic ADAU-M level transmitters

Description

The level gauges are designed for continuous automatic remote measurement of the level of non-boiling distilled water and high purity water in hermetically sealed tanks. The level transmitters have two measurement channels - analogue and discrete, working in concert. The principle of operation of the analogue channel is based on the property of ultrasonic oscillations with different acoustic resistances reflected from the interface. The principle of action of the discrete channel is based on the change in the energy of ultrasonic vibrations passing through a liquid or gas, due to different values of acoustic impedances of these media.

Specifications

Power supply voltage 27 V

Service life 20 a

Degree of protection of the outer shell IP65

Measuring range 0...5000 mm

Limits of permissible basic reduced error 1 %

Working pressure of the medium 21 MPa

Power consumption 15 W

Type of medium distillate, high purity water

Temperature of the medium 5...250 °C

Ambient temperature -10...55 °C

Inertia 1

Probability of failure-free operation 0.95 for 26000 h

Interval between verifications 5 a

Model Analogue-discrete acoustic level gauge

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
