Magnetic float converter PMP-099

Level Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Magnetic float converter PMP-095 Magnetic float converter PMP-066 Magnetic float converter PMP-092

Description

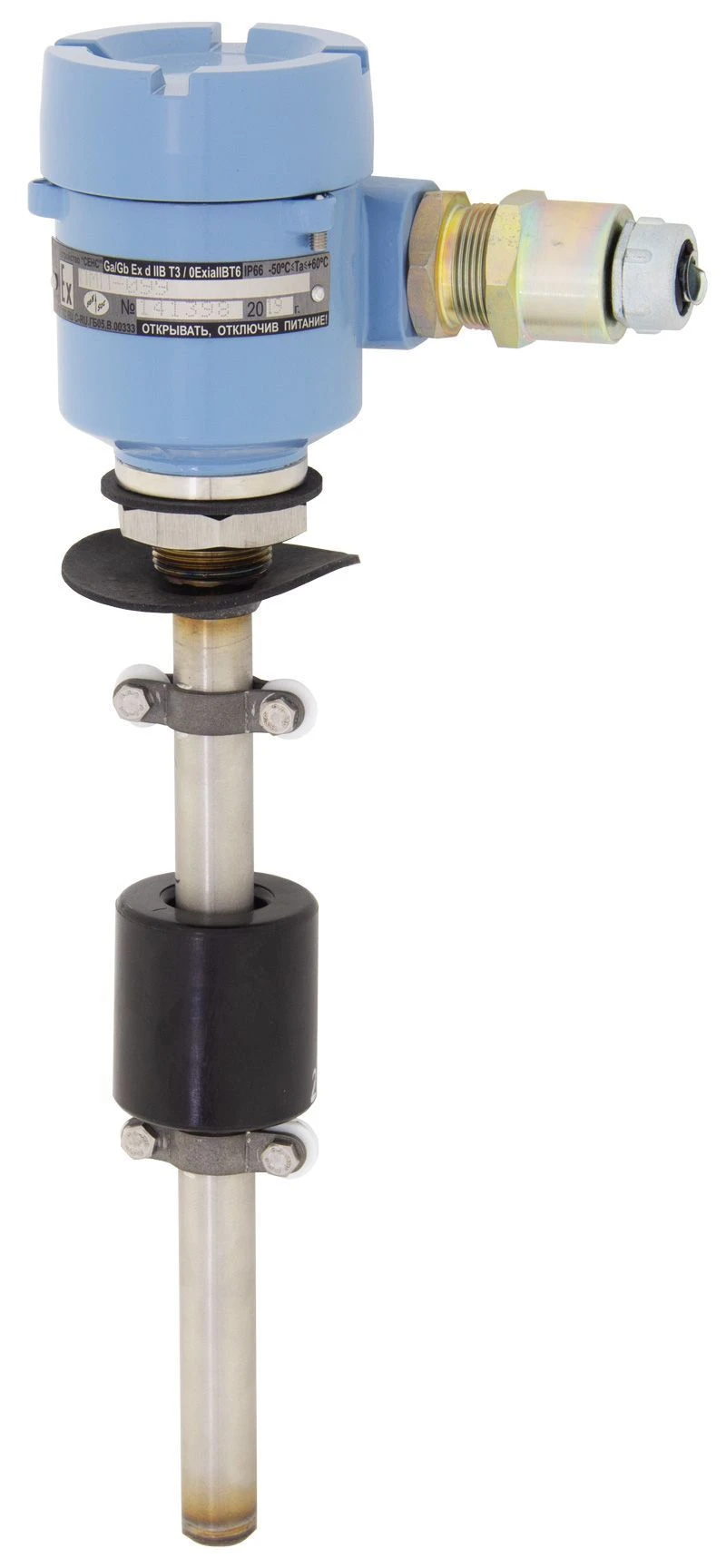

The level sensors having the output type "W5DNZ" are designed for control of 1 ... 3 levels of tank filling complete with signalling devices MC-3-..... Level sensors complete with signalling device can be used in technological systems for automatic control of transfer pump; prevention of tank overfilling; control of double-walled tanks tightness; or for other purposes, which require increased reliability of liquid level control system. Reliability is ensured by: - duplication of the main units (floats, reed switches), - automatic control of serviceability (function of signalling devices MS-...).
Converter PMP-099 is designed for control of three upper levels of tanks of petrol stations (B=90%, VA=95%, A>95%), gas stations (B=80%, VA=85%, A>85%) or others, when filling which requires increased reliability of the overfill control system.

Specifications

Temperature of the controlled medium

from minus 50 ºC to + 60 (+ 1252) ºC (provided the controlled medium does not freeze) °C

Assigned service life

15 a

Degree of protection according to GOST 14254

IP66

Explosion protection marking

Ga/Gb Ex ia IIB T6

Output type

w5dnz - reed contact; shunted by diode. output load parameters are: voltage (pulse; alternating polarity), not more than ± 15 V; current, not more than - 50 mA; power, not more than - 5 Watt

Controlled levels

"PMP-099- ... -N..." - one lower level; "PMP-099- ... -V..." - one upper level; "PMP-099- ... -V... - VA..." - two upper levels; "PMP-099- ... -NA... - N..." -two lower levels; "PMP-099- ... -H... - VA..." - lower and upper levels.
