Welding Machine ADD - 4009 I U1 Available for Import

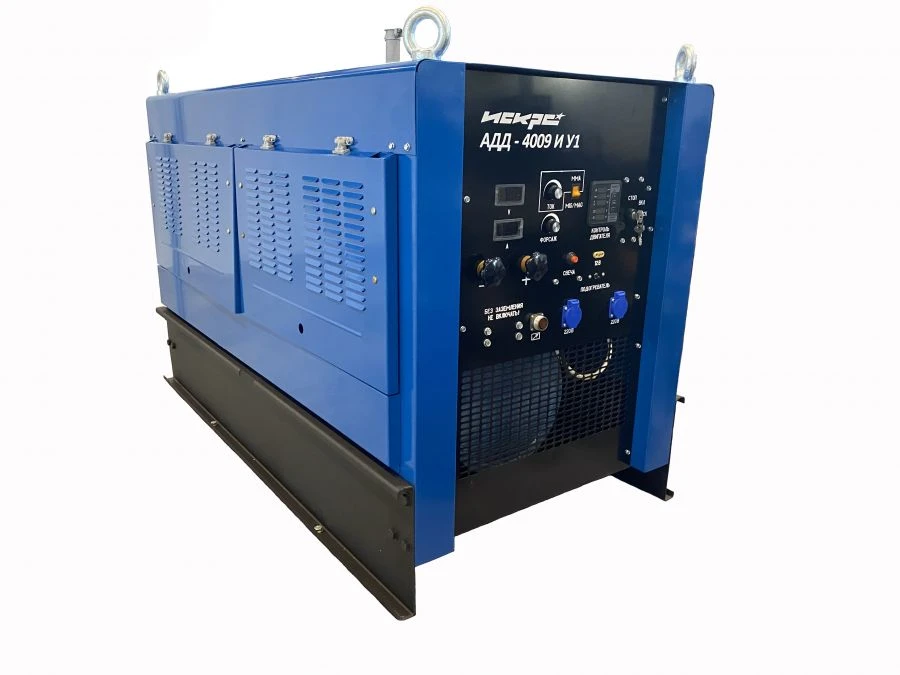

ADD - 4009 I U1 Welding Machine for Manual Arc Welding and Metal Cutting

Electric Soldering & Welding Machines
Manufacturer: UZSNGU "ISKRA" LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Designed to supply one welding station for manual arc welding, cutting and cladding of metals with direct current fusion electrode. It has the function of semi-automatic welding in shielding gas. Designed for outdoor work in field conditions. The control panel with digital type instruments allows to monitor the parameters of the machine clearly, in an easy-to-read form. .

Specifications

Rated welding current
400 A
Rated operating voltage
NZ-150-14,5 V
No-load voltage
5
Load duration, PU
60 %
Welding current control limits
60...430 A
Engine model
NF4102ZD
Motor power
46 kW
Rotational speed
1800
Cooling system
Closed type with forced coolant circulation
Summer fuel
?-0,2-40
Winter fuel
Z-0.2 minus 35
Engine oil
Lux SAE 10W -40 semi-synthetic
Hourly fuel consumption of the engine in nominal operation mode
0.00133
Fuel tank capacity
60 l
Rated power of the genset
2
Power generator frequency
SBVVBG
Rated voltage of the genset
230 V
Power generator speed
3000
Unit weight without accessories
800 kg
Length
1870 mm
Width
950 mm
Height
1200 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
