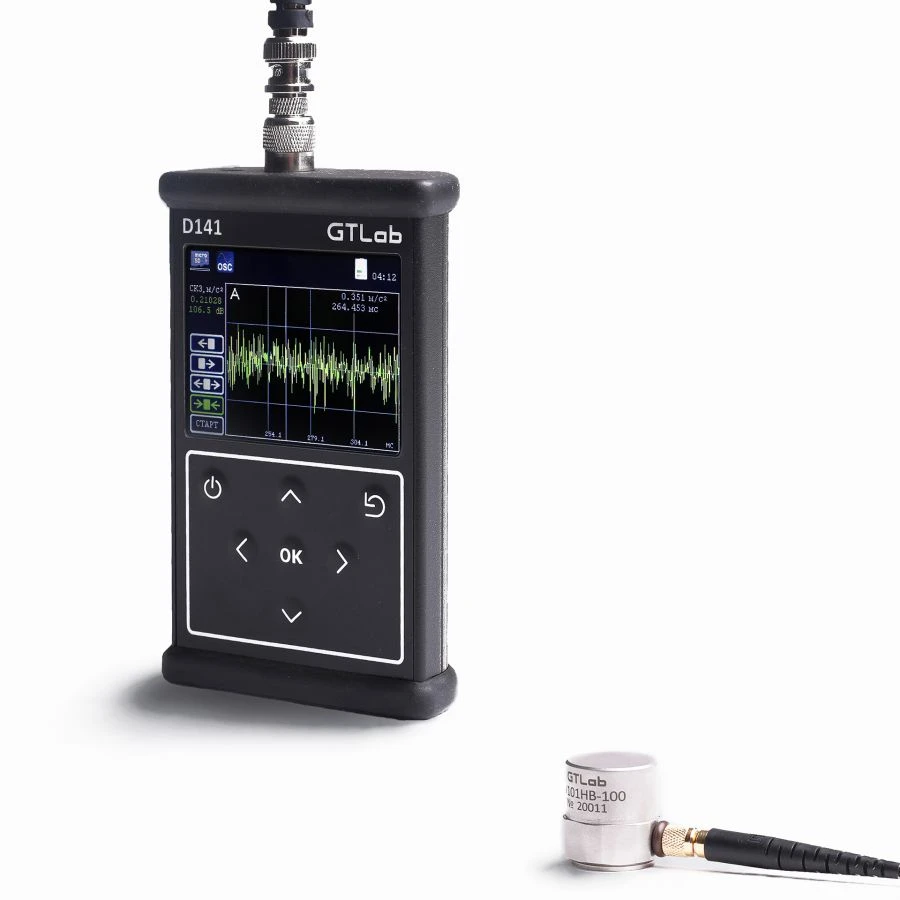

Vibrometer D141

Vibration Measurement Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Vibrometer is designed for on-line measurement of vibration parameters (vibration acceleration, vibration velocity, vibration displacement in RMS, Peak, Swell formats) of the investigated equipment. The 3.5 inch display allows displaying on the screen the oscillogram of the signal and its spectrum (octave, third-octave, narrowband). There is a function of signal recording on the built-in SD card (including over level). Built-in charge amplifier and voltage amplifier allow you to connect to the vibrometer virtually any single-component vibration sensor, both with a charge output, and with the output standard IEPE.

Specifications

ADC sampling frequency 51,2 kHz

Measurement mode vibration acceleration, vibration velocity, vibration displacement

Virtual instruments Oscilloscope, vibrometer, signal recording, spectroanalyser (FFT 1/1, 1/3, envelope), rolling bearing diagnostics

Frequency range 0.5 Hz ... 12.8 kHz

Detector размах, пик, СКЗ, пик- фактор

Maximum input charge (peak) 48 - 103 pCal

Power supply voltage ± 4,8 ?

Data exchange mini USB

Data storage SD card

Operating temperature range -20 ... +55 °?

Weight 260 ?

Dimensions 140 × 80 × 25 mm

Battery life at least 8 hours

Housing material aluminium, 2mm

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
