Available for Import

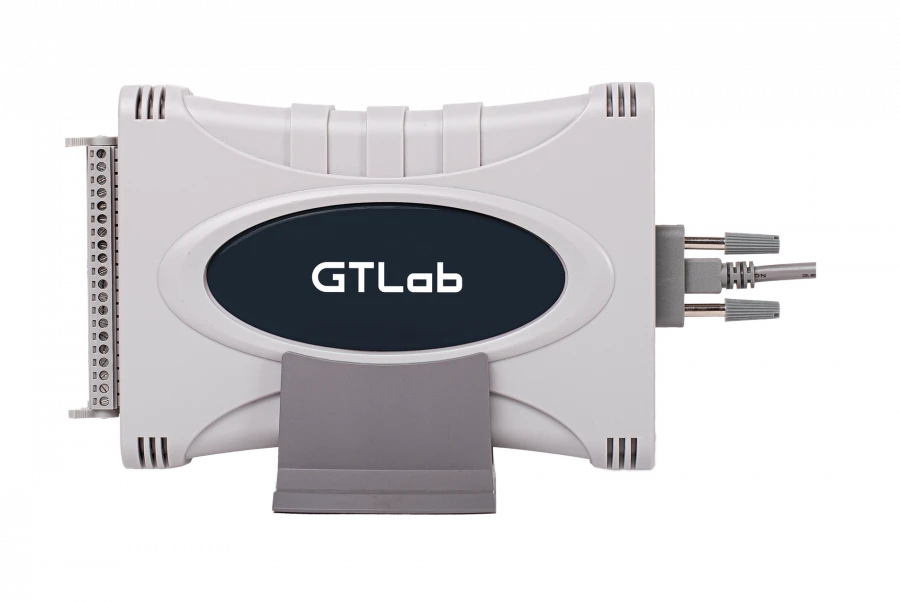

Data acquisition module D002

Vibration Measurement Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The data acquisition module is used for analogue-to-digital conversion of signals from sensors up to 600 kHz and for transferring the converted signal to a PC (registration, recording and digital post-processing). Connection via USB. Virtual instruments of GTL software (supplied with ADC): spectroanalyser (octave, third-octave, direct), reciprocal spectrum, envelope spectrum, oscilloscope, AFFC (amplitude-phase frequency response), modal analysis, octave analysis, AC and DC voltmeters, frequency meter, flexible filters of upper VLF and lower VLF frequencies (up to 50 orders), signal recording (time, level). The software is regularly updated. Always use the latest up-to-date version.

Technical Specifications

ADC sampling frequency	2000 kHz
Interface	USB 2.0 (HighSpeed)
Operating temperature	0 ... +55 °?
Nutrition	USB
Frequency range	600 kHz
Measured DC and AC voltage ranges	± 10,000 mV
Number of ADC bits	16 bits
Input impedance	900 mOhm
GTL software features	? Oscilloscope; ? Spectroanalyser; ? Amplitude and phase frequency response; ? Modal analysis; ? AC voltmeter; ? DC voltmeter; ? Signal recording and reproduction; ? Flexible digital filters VLF, VHF, band-pass, band-rejector.
Type of product according to PP RF 616	Instruments and other instruments for measurement, control and testing
Number of analog inputs	4

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
