Dynamic Pressure Transducers 5V122TA-XX

Vibration Measurement Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

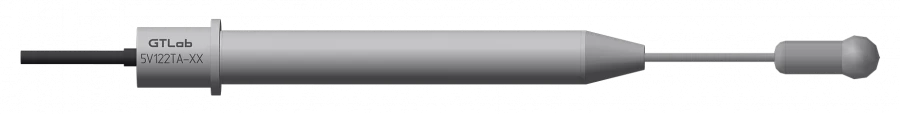

Dynamic pressure sensors with spherical sensing element are designed for measuring parameters of shock waves and rapidly variable pressures in liquid and gaseous media.

Specifications

Upper measurement limit 1 000 kPa | 2 500 kPa | 6 000 kPa | 10 000 kPa

Conversion factor 5 mV/kPa | 2 mV/kPa | 0.8 mV/kPa | 0.5 mV/kPa

Limits of permissible basic error reduced to the upper limit of measurement ± 2%

Upper limit of the operating frequency range > 25 kHz

Operating temperature range - 30 ... + 50 °?

Output impedance < 100 ohms

Output impedance + (15 ... 30) V 2 ... 20 mA

DC output voltage level 8 ... 11 ?

Sensing element material CTC-19

Housing material stainless steel

Housing design smooth

Degree of protection against external influences IP68

Weight (without cable and connector) 110 ?

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
