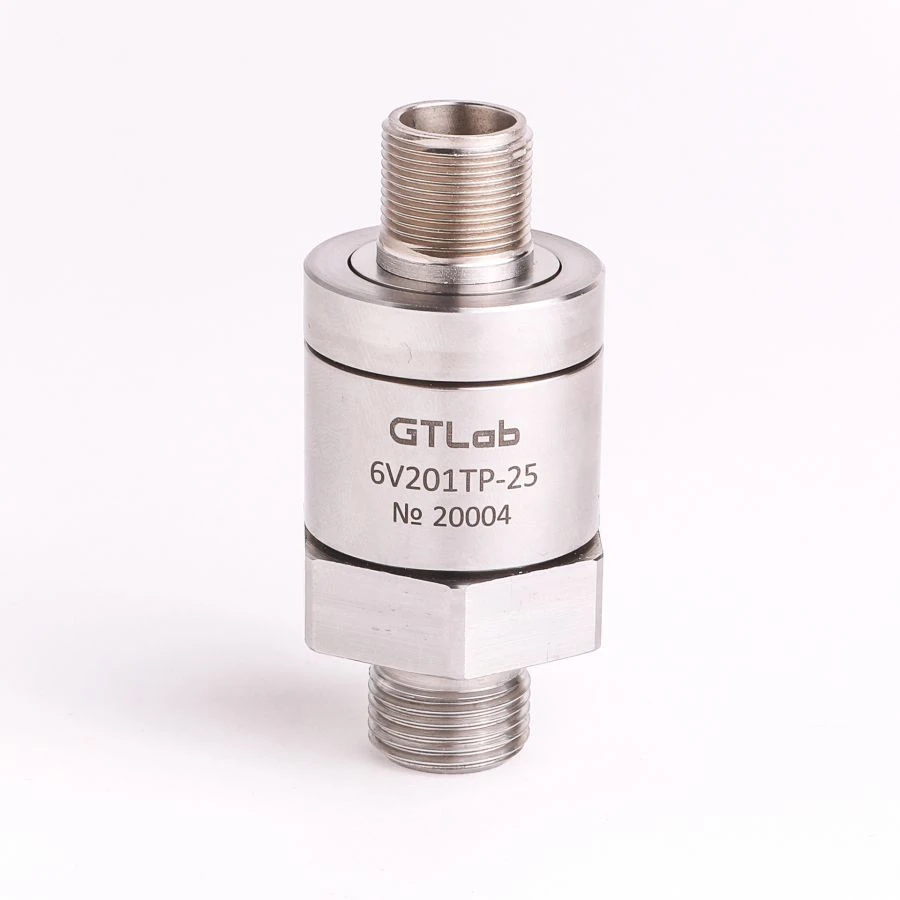

Static dynamic pressure sensor 6V201TP-XX-5

Vibration Measurement Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Static-dynamic pressure sensor 6V201TP-XX

Static-dynamic pressure sensors are used for research and control of dynamic processes in internal combustion engines, gas turbine engines, hydraulic and pneumatic systems. They are designed to measure pressure in shock and detonation waves in gas and liquid media. They have additional capabilities in terms of registration of total pressure, including static component in the frequency range up to 10 kHz at temperatures up to 300 °C

Technical Specifications

Measuring range	-0.1 to 1.6 MPa \| -0.1 to 2.5 MPa \| -0.1 to 4 MPa \| -0.1 to 6 MPa \| -0.1 to 10 MPa \| -0.1 to 16 MPa \| -0.1 to 25 MPa \| -0.1 to 40 MPa \| -0.1 to 60 MPa \| -0.1 to 100 MPa \| -0.1 to 160 MPa
Output voltage	5 ?
Natural frequency in fixed state	18 kHz \| 22 kHz2 \| 8 kHz \| 32 kHz \| 45 kHz \| 55 kHz \| 70 kHz \| 90 kHz \| 100 kHz \| 140 kHz \| 170 kHz
DC output voltage level	400 ... 600 mV
Acceleration sensitivity	< 0.001 bar/g
Ambient temperature	-50 ... +85 °?
Temperature of the medium	-50 ... +300 °?
Power supply voltage	+(9 ... 15) ?
Consumption current	< 30 mA
Housing material	stainless steel
Weight (without cable)	190 ?
Type of product according to PP RF 616	Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
