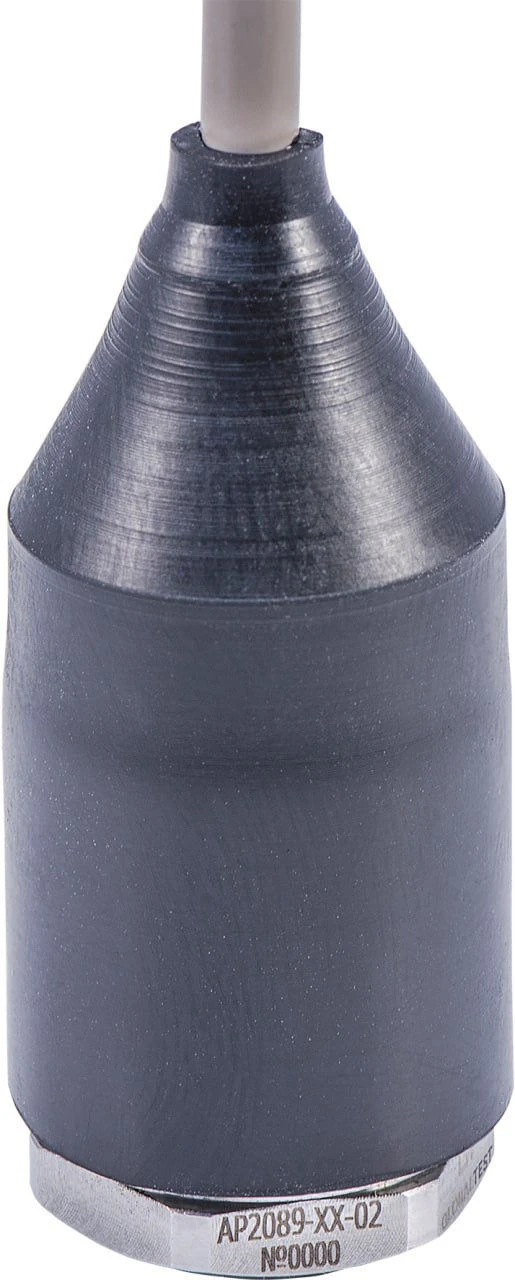

Available for ImportVibration Transducer AR2089 for Measuring Mechanical Vibrations
Manufacturer:GLOBALTEST LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Designed for measuring mechanical vibrations of the controlled object
Specifications
Type
Limits of permissible basic relative error in vibration acceleration measurement in working ranges of amplitudes and frequencies plus -minus 15 %
Assignment
Nominal value of conversion coefficient at base frequency 200 Hz - 1 mV/(m*s^-2);3 mV/(m*s^-2);10 mV/(m*s^-2)
Nonlinearity of the amplitude response
-4...4 %
Frequency of mounting resonance in the axial direction, not less than
NZ-150-14,5
Relative transverse conversion coefficient, not more than
5 %
Deviation of the actual conversion ratio value from the nominal value
-10...10 %
Operating frequency range of the measured acceleration sensor
0.5...12000
Type of product according to PP RF 616
Instruments and other instruments for measurement, control and testing
