Data acquisition module D004

Vibration Measurement Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

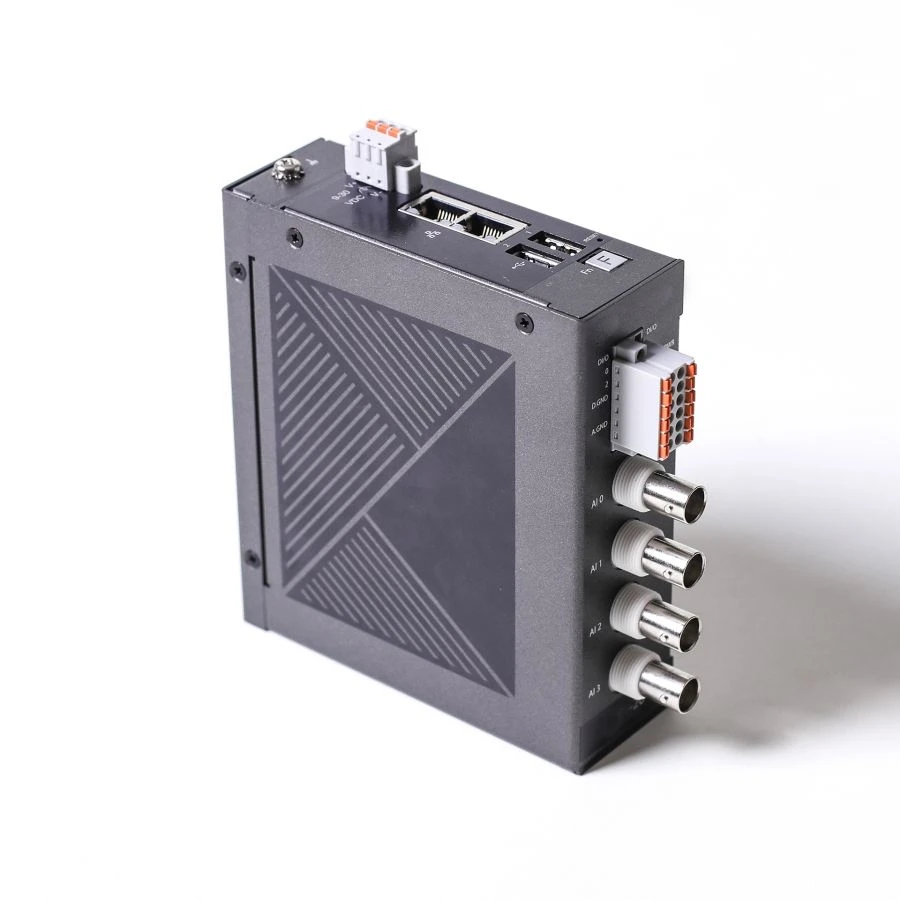

The D004 data acquisition module is used for analogue-to-digital conversion of signals from sensors up to 50 kHz and for transmission of the converted signal to a PC via Ethernet (registration, recording and its digital post-processing). Virtual instruments of GTL software (supplied with ADC): spectroanalyser (octave, third-octave, direct), reciprocal spectrum, envelope spectrum, oscilloscope, AFFC (amplitude-phase frequency response), modal analysis, octave analysis, AC and DC voltmeters, frequency meter, flexible upper VFD and lower LFD filters (up to 50 orders of magnitude), signal recording (time, level). The software is regularly updated. Always use the latest up-to-date version.

Technical Specifications

ADC sampling frequency	128 kHz
Type of input connectors	BNC
Interface	Ethernet
Operating temperature	0 ... +55 °?
Nutrition	6 - 36 V (DC)
Frequency range	50,000 Hz
Measured DC and AC voltage ranges	± 10,000 mV
Number of ADC bits	24 bits
Input impedance	200 kOhm
Instrument synchronization (number)	8 pcs
Possibility to connect sensors according to IEPE standard (2 mA, 24 V)	Got it
Type of product according to PP RF 616	Instruments and other instruments for measurement, control and testing
Number of analog inputs	4

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
