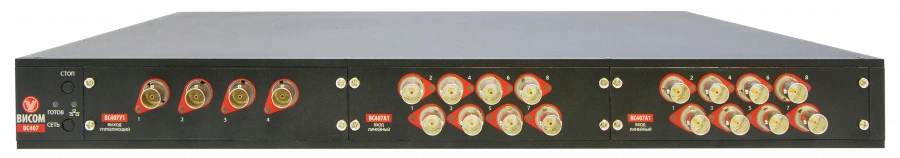

Vibration test control and signal registration systems VS-407

The system is designed for measurement and registration of DC and AC voltage, charge from the outputs of primary measuring converters of various types, reproduction of DC and AC voltage, reproduction and measurement of AC frequency, measurement of nonlinear distortion coefficient. The principle of operation is based on amplification and matching of output electrical signals of primary measuring transducers installed on the tested articles, conversion of measuring signals into digital code, further processing and formation of control signals of the vibration test bench so that the measuring parameters of vibration correspond to the specified test profile.
