Vibration controller A632

Vibration Measurement Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

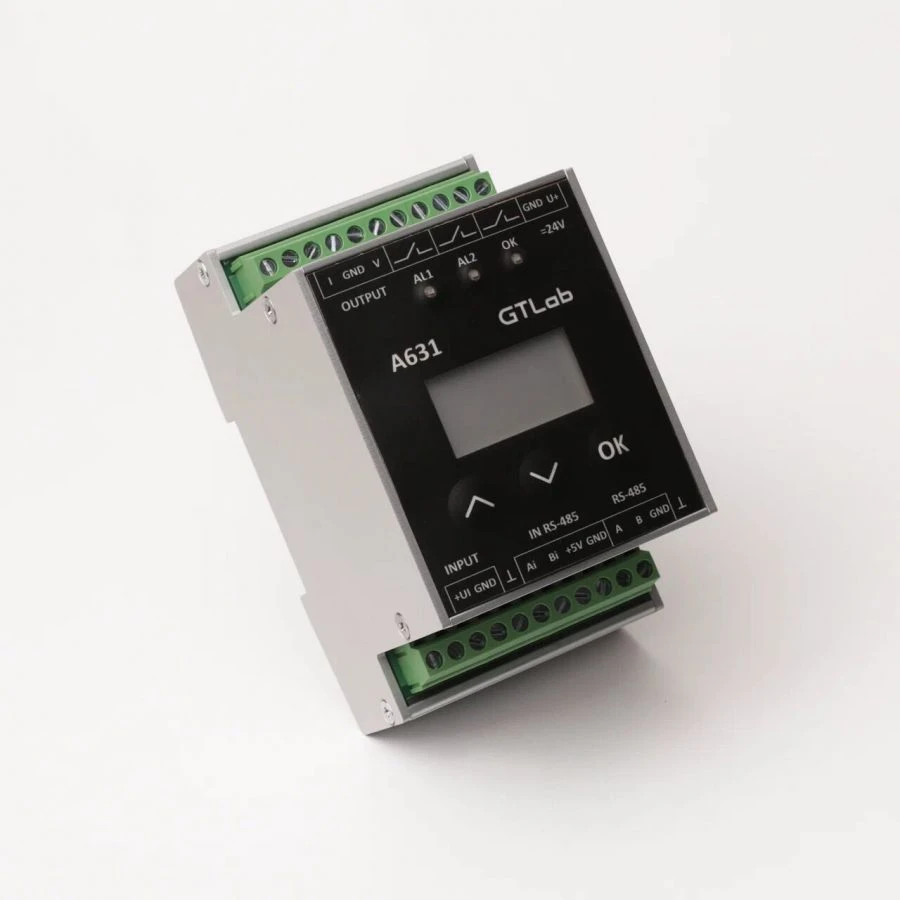

Vibration controller A631

Description

Vibration controllers are designed to measure vibration processes and transfer the obtained values to automatic control systems of technological equipment.

Specifications

DIN rail mounting Armoured glass

Maximum value of measured vibration acceleration, RMS 200 m/s2

Operating frequency range of measured vibration acceleration (frequency response non-uniformity ± 10 %) VHF 2,3,5,10,30 Hz (user adjustable)

Maximum value of measured vibration velocity, RMS 200 mm/s

Maximum value of measured vibration displacement span, RMS 1000 µm

Input/output connectors screw terminals

Measurement error in the operating temperature range ±2 %

Types of connected vibration transducers IEPE

Data exchange in the information system RS485

Sensor supply voltage IEPE 24 + 2 V

IEPE sensor supply current (±10 %) 5.7 mA

Consumption current (terminal blocks) 4 ... 20 mA

Supply Voltage (BNC) ± 5 V (signal)

Dry contacts: for monitoring the measured parameter AL1, AL2, AL3

Step of setting the thresholds 0,1 (1) mm/sec

Conditions of signalling (closed or open) of relay contacts "AL1", "AL2", "AL3" continuous exceeding of the set threshold by the informative signal within 0-9 s

Mode of operation of relay contacts lockout/self-recovery

Self-recovery condition 6% reduction of vibration from the trigger threshold

Delay of vibration control after establishing operation mode/self-recovery 0 or 20

Dry contact parameters Dry contact parameters <1A

Differential synchronisation line Got it

Information displayed on the built-in display Measured parameter, sensor conversion coefficient, values of set thresholds, error codes in case of cable breakage and sensor failure, setting of time of exceeding threshold values, relay contact states

Consumption current < 200 mA

Supply voltage (±10 %) 18...30 V

Weight 200 g

Operating temperature range -40...70 °C

Step of setting the time of exceeding the vibration velocity threshold values 1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
