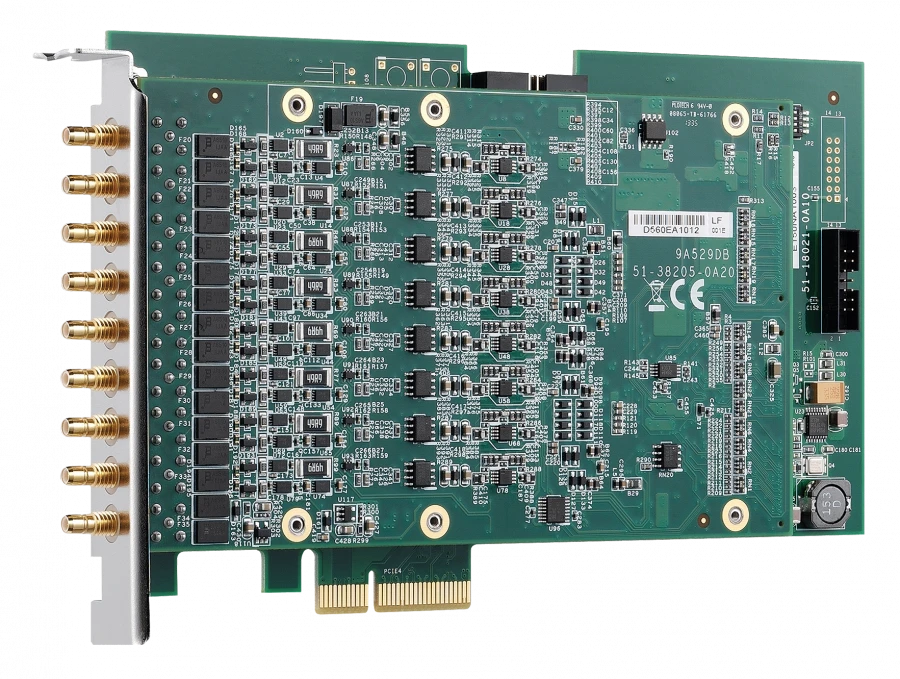

Data acquisition module D005

Vibration Measurement Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The data acquisition module is used for analogue-to-digital conversion of signals from sensors up to 50 kHz and for transferring the converted signal to a PC (registration, recording and its digital post-processing). Connection via PCI Express bus. Virtual instruments of GTL software (supplied with ADC): spectroanalyser (octave, third-octave, direct), reciprocal spectrum, envelope spectrum, oscilloscope, AFFC (amplitude-phase frequency response), modal analysis, octave analysis, AC and DC voltmeters, frequency meter, flexible filters of upper VLF and lower VLF frequencies (up to 50 orders), signal recording (time, level). The software is regularly updated. Always use the latest up-to-date version.

Specifications

ADC sampling frequency 128 kHz

Type of input connectors SMB

Interface PCI Express

Operating temperature 0 ... +55 °?

Frequency range 50,000 Hz

Measured DC and AC voltage ranges ± 10,000 mV

Number of ADC bits 24 bits

Input impedance 200 kOhm

Possibility to connect sensors according to IEPE standard (2 mA, 24 V) Got it

GTL software features ? oscilloscope; ? spectroanalyser; ? amplitude and phase frequency response; ? modal analysis; ? AC voltmeter; ? DC voltmeter; ? signal recording and playback. ? Flexible digital filters VLF, FWF, band-pass, band-rejector filters

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Number of analog inputs 8

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
