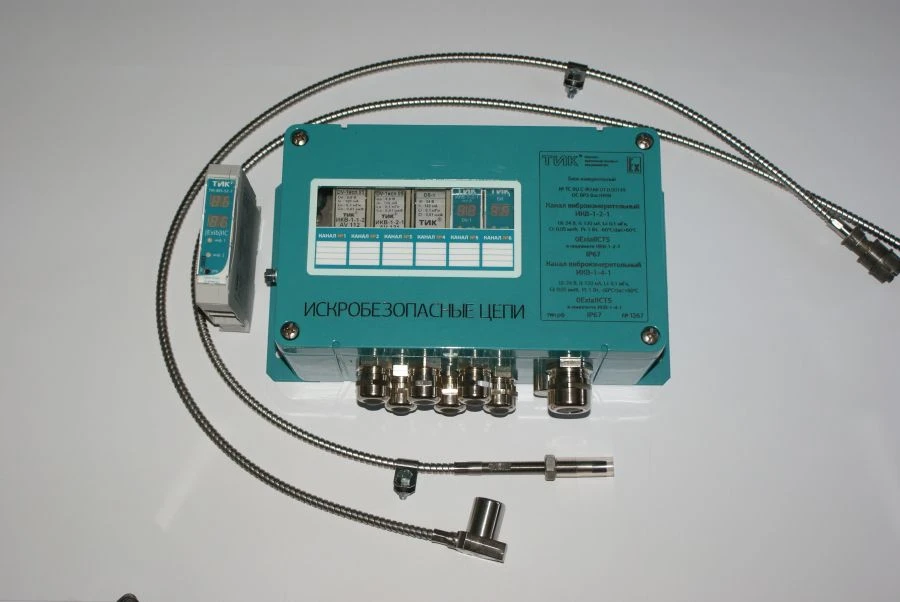

Vibration measuring equipment IKV-1

The vibration measuring equipment IKV is designed to measure vibration acceleration, vibration velocity, vibration displacement, axial displacement, rotation frequency, temperature at the controlled object, and convert them into a unified signal (4-20) mA, into a two-wire voltage output signal, resistance. It can also be used as a check marker and for measuring the speed of rotation.
The equipment can be used in multi-channel measurement systems.
The vibration measuring channels include:
1. vibration transducers eddy current transducers with explosion protection marking "0Ex ia IIC T6...T1 Ga X" or vibration transducers with explosion protection marking "1ExsIIT6X", or resistance thermocouples with marking not lower than "0ExiaIICT6";
2. transmitter with output (4-20) mA and explosion protection marking not lower than 0Ex ia;
3. safety barriers with the explosion protection marking "[Ex ib Gb] IIC", "[Ex ia Ma] I", "[Ex ia Ga] IIC" or a device with intrinsically safe input circuits.
