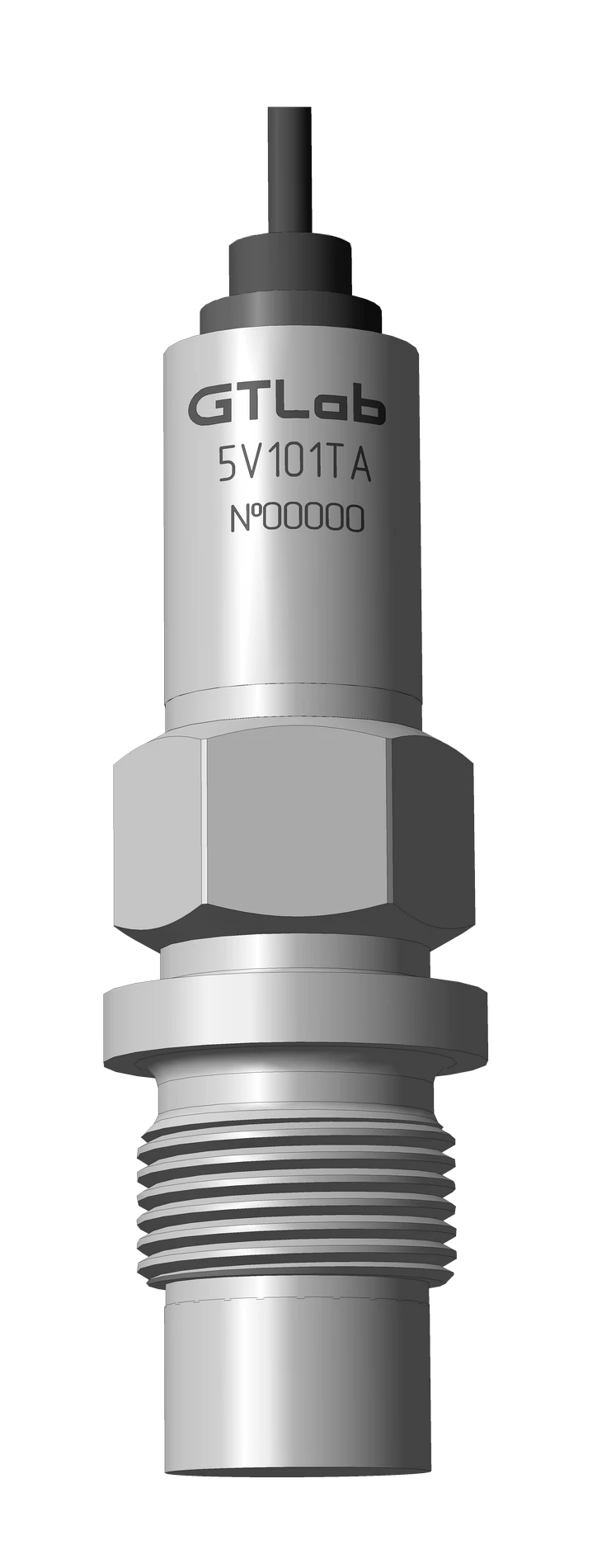

Dynamic Pressure Sensors 5V101TA-XX for Monitoring Engine Performance
Manufacturer:
GTLAB LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Dynamic pressure sensors with voltage output are used for research and control of dynamic processes in internal combustion engines, gas turbine engines, hydraulic and pneumatic systems. They are intended for measuring pressure in shock and detonation waves in gas and liquid media.
Specifications
Upper measurement limit
0,06 MPa | 0,6 MPa | 6 MPa | 25 MPa
Conversion factor
80 000mV/MPa | 8 000 mV/MPa | 800 mV/MPa | 200 mV/MPa
Limits of permissible basic error reduced to the upper limit of measurement
± 2,5 %
Natural frequency in fixed state
> 30 kHz
Acceleration sensitivity
< 0.00005 MPa/g 1g = 9.807 m-s-2 or 10 m-s-2 = 1.02 g
Operating temperature range
-60 ... +125 °?
Output impedance
< 100 ohms
Power supply: ? voltage ? current
+ (15 ... 30) V 2 ... 20 mA
DC output voltage level
8 ... 11 ?
Sensing element material
lithium niobate (5V101TA-0,6) | quartz
Housing material
stainless steel
Stainless steel
stainless steel
Degree of protection against external influences
P68 Hermetically sealed (can be used at depths up to 50 metres)
Weight (without cable and connector)
40 ?
Type of product according to PP RF 616
Instruments and other instruments for measurement, control and testing
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
