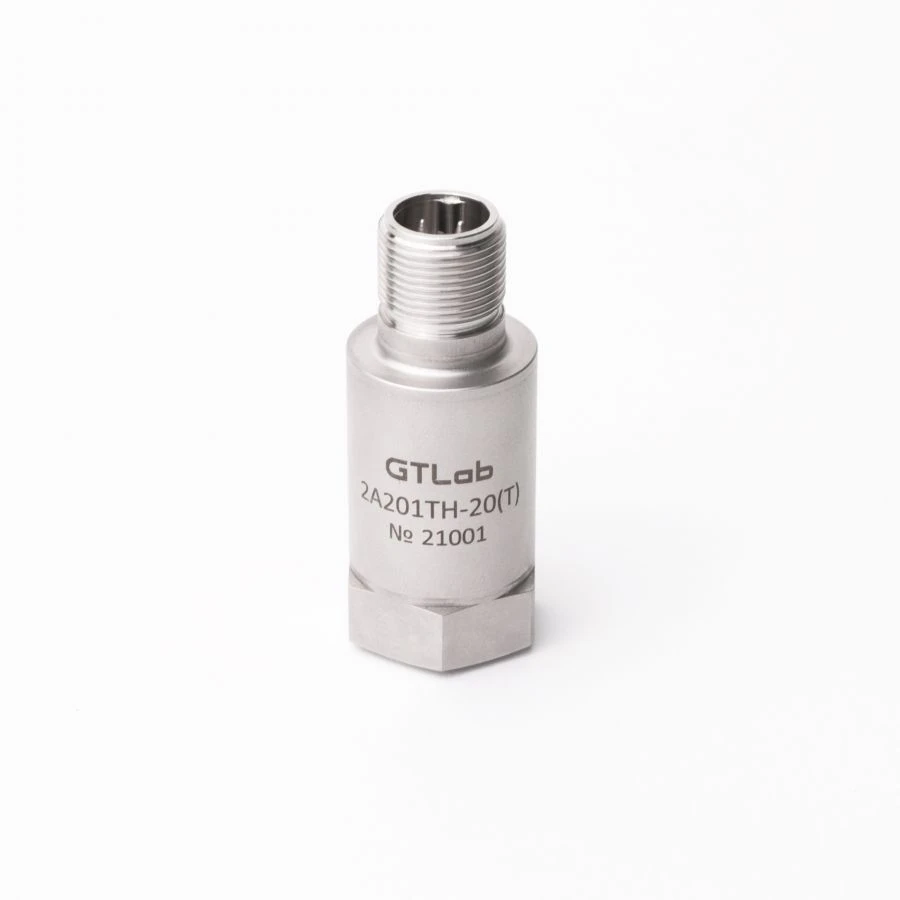

Vibration Velocity Sensor 2A201TH-XX (T) Available for Import

Vibration Velocity Sensor 2A201TH-XX (T) for Accurate Industrial Measurements

Vibration Measurement Equipment
Manufacturer: GTLAB LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Vibration velocity transducers with standard current output 4 ... 20 mA. They are intended for measuring the RMS of vibration velocity of industrial equipment in conditions of strong industrial noise. Increased noise immunity (including protection against pyroeffect) is achieved by design features of the shear sensing element, electronic board, internal screen and its electrical isolation from the object of study.

Specifications

Vibration velocity to current signal conversion factor 4 ... 20 mA, (± 10 %)
1.6 mA?s/mm | 0.8 mA?s/mm | 0.4 mA?s/mm | 0.2 mA?s/mm | 0.1 mA?s/mm | 0.08 mA?s/mm
Measured vibration velocity range, RMS
10 mm/s | 20 mm/s | 40 mm/s | 80 mm/s | 160 mm/s | 200 mm/s
Operating frequency range of measured vibration velocity
10 ... 1 000 Hz
Unevenness of frequency response relative to the value at the base frequency 159.15 Hz, within the limits of
3 to minus 12.5%
Relative transverse conversion ratio
< 5 %
Operating temperature range: standard | (T)
-40 ... +85 °? | -40 ... +125 °?
Coefficient of influence of ambient air temperature, within the limits of
± 0,2 %/°?
Sensor supply voltage
+ (10 ... 24) ?
Time to establish operating mode
< 4 ?
Housing material
stainless steel
Explosion protection
1Ex d IIC T6...T4 Gb | 0Ex ia IIC T6...T4 Ga
Degree of protection against external influences
P67
Weight (without cable)
60 ?
Type of product according to PP RF 616
Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
