Available for Import

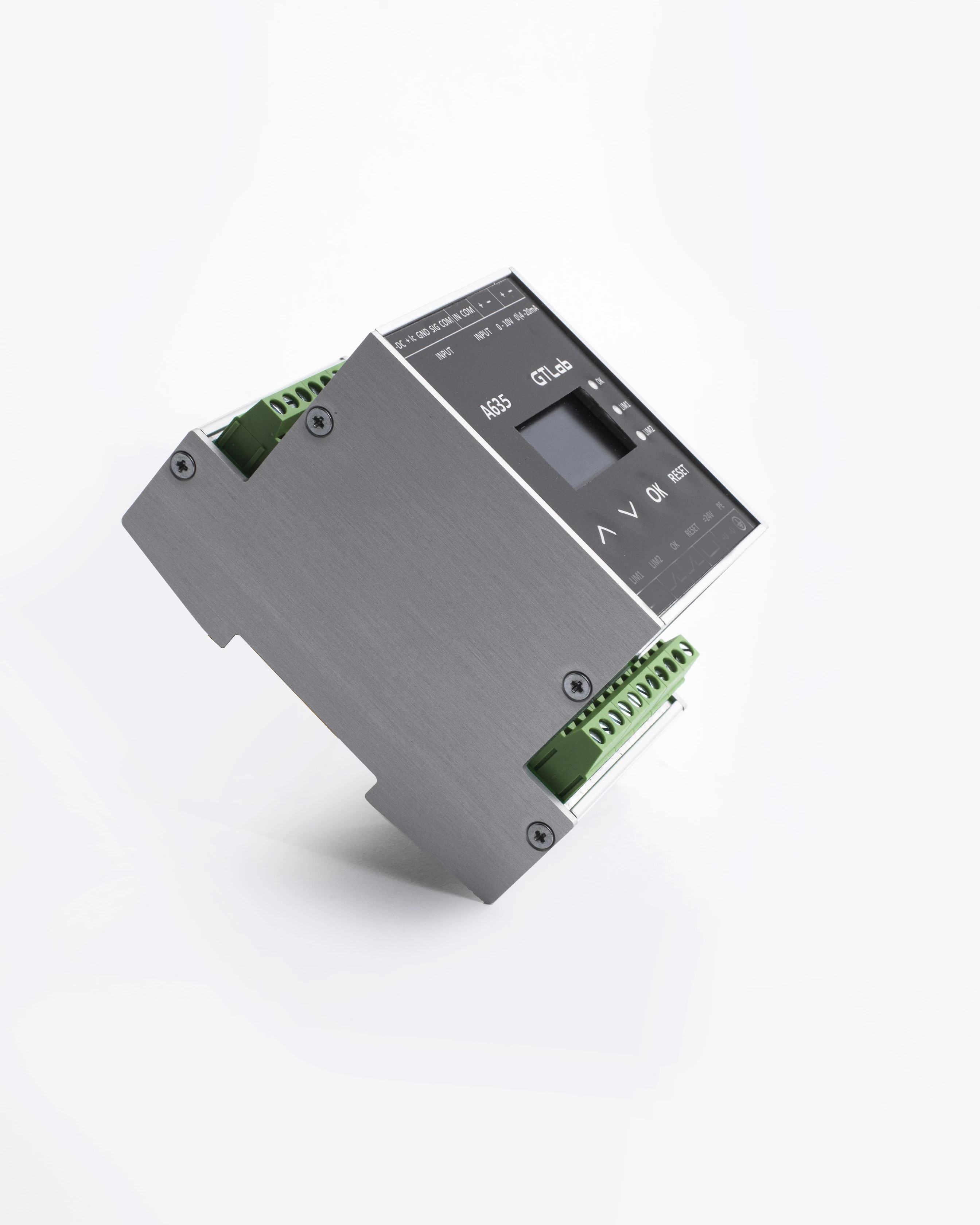

Vibration controller A635

Vibration Measurement Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Vibration controllers are designed to measure vibration processes and transfer the obtained values to automatic control systems of technological equipment.

Technical Specifications

Measured vibration velocity range, RMS	0 ... 10 mm/s
Measurement ranges of relative vibration displacement ranges	0 ... 125 microns
Static clearance measurement ranges	0,2 ... 2,2 mm
Operating frequency range of measured vibration velocity (AFC non-uniformity - 1 dB)	1 ... 1 000 Hz
Operating frequency range of the measured vibration displacement (ACF non-uniformity - 1 dB)	1 ... 10 000 Hz
Maximum input charge (peak)	± 5 000 pCal
Maximum AC input voltage	± 5 ?
Output	current 0 ... 20 mA
Maximum DC input voltage	24 V
Data exchange in the information system	RS485
Input/output connectors	screw terminals
Measurement error in the operating temperature range	±2 %
Measurement error	±2 %
Sensor supply voltage	IEPE
Sensor supply current (±10 %)	5.7 mA
Parameters of built-in comparators	Values of set thresholds 0,1 -100 mm/sec
Conditions for issuing exceedance signals	Continuous exceeding of the set threshold value by the informative signal within 0-100 s
Trigger mode	with locking or self-repairing system
Self-recovery condition	Reduces the threshold level by 6 %
Vibration control delay after the self-recovery operating mode is established	0 or 20 s
Information displayed on the built-in display	Values of measured vibration velocity, relative vibration displacement or static clearance RMS.
Consumption current	< 200 mA
DIN rail mounting	Armoured glass
Weight	200 g
Feature	Operation with charge PE vibration transducers, with integrated electronics of IEPE type, with integrated electronics with positive supply and voltage output, with eddy current signal conditioners.
Operating temperature range	-40...70 °C
Step of setting the time of exceeding the threshold values	1
Power supply voltage	18...30 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
