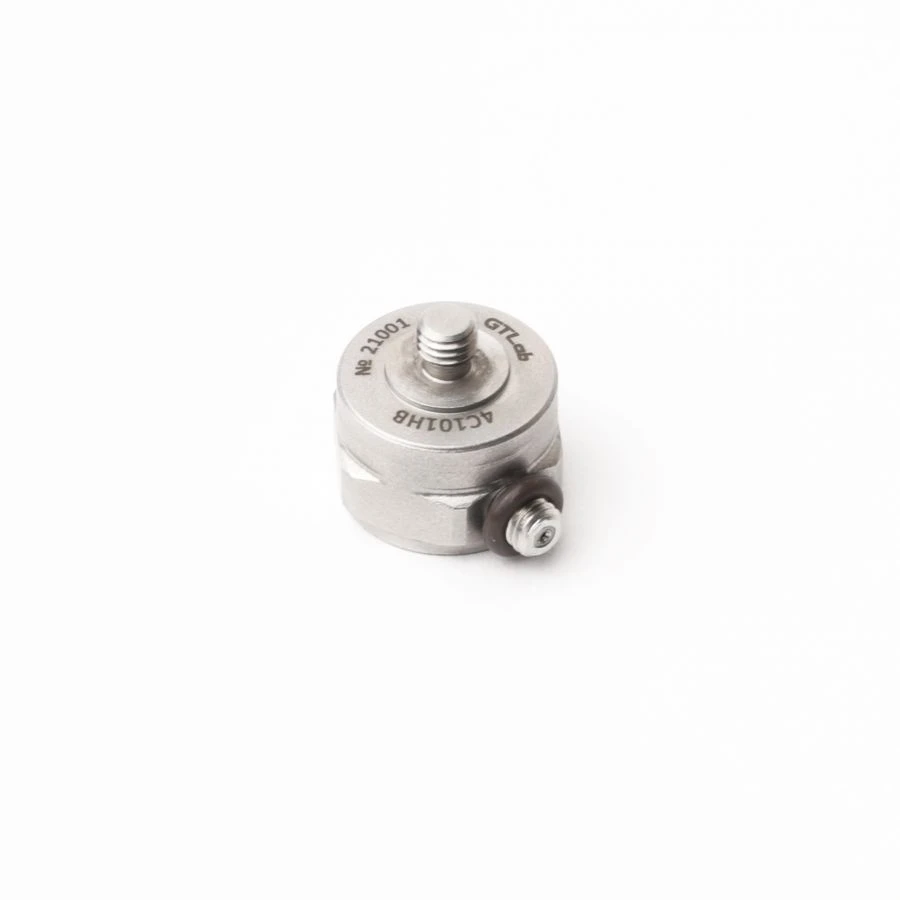

Force transducer 4C101HB

Vibration Measurement Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Force sensors with charge output have a wide temperature range and increased shock resistance. They are designed to measure dynamic forces acting on the structures of test benches, equipment and industrial buildings.

Technical Specifications

Conversion factor (± 20 %) (nominal value)	4 pKl/N
Relative transverse conversion ratio	< 5%
Coefficient of influence of ambient temperature	< 0,05 %/°?
Operating temperature range	-60 ... +200 °?
Strain sensitivity	< 0.03 Nm/µm
Electrical capacity	10 ... 14 pF
Insulation resistance under normal conditions	> 1,000 megohms
Natural frequency in fixed state	> 30 kHz
Effective inertial mass	4 g top of piezo element, 15 g bottom of piezo element
Housing material	stainless steel
Weight (without cable)	20 ?
Type of product according to PP RF 616	Instruments and other instruments for measurement, control and testing
Force measurement range	-1000...5000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
