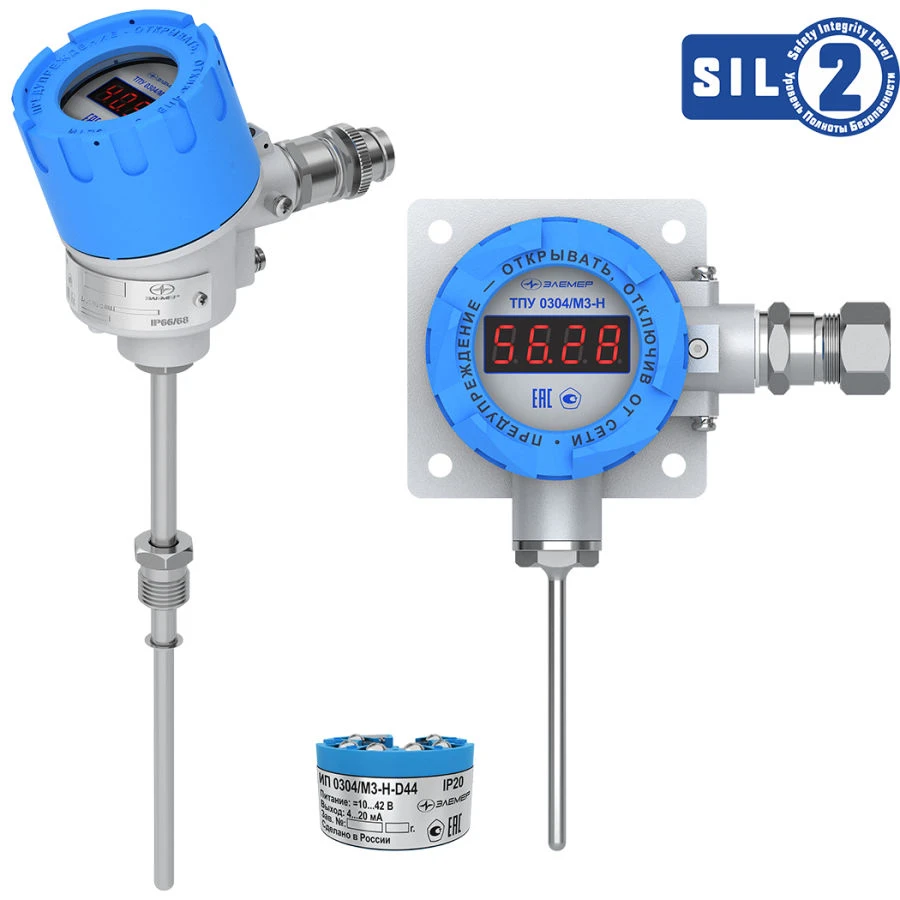

Universal thermal converters TPU 0304/M3-H

Temperature Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Thermoconverters universal TPU 0304/M3-H are designed to measure and convert the temperature value of various media into a unified current output signal 4...20 mA + HART. Universal thermal converters TPU 0304/M3-H are used for operation with liquid, loose, solid and gaseous media in oil, gas, chemical industry, metallurgy, power engineering, atomic energy facilities, at sea-based facilities, etc. The use of thermal converters is allowed for the use of the temperature of different media. The use of thermal converters is allowed for temperature control of aggressive media in relation to which materials in contact with the measured medium are corrosion-resistant. For universal thermal converters TPU 0304/M3-H there is a possibility of installation of two sensitive elements (both TC and TP) in one protective casing with the function of "hot redundancy".

Technical Specifications

Type of device	Microprocessor
Measured temperature range	-196...+1800 degrees C
Type (NCC) of primary converter	100M, Pt100, TJK (J), TJK (L), TCA (K), TPP (S), TPP (B), TNN (N)
Output signal, mA	4...20 mA + HART
4-wire connection diagram of primary converter	Armoured glass
Hot Standby functions	For 2 CEs
Power supply voltage	=10...42 ?
Accuracy class	From 0.08% (order index A0 for modification /M3-H); from 0.15% (order index A), from 0.25% (order index B)
Inspection interval	4 years
Galvanic isolation between input and output circuits	Armoured glass
Climatic designs	?? (-25+70 ?), ?1 (-55+70 ?), ?3 (-25+80 ?), ???.3.1 (-25+70 ?) , ???1 (-60+70 ?)
Dustproof	IP66 / IP67 / IP68;
Electromagnetic compatibility	IV-A;
Performances	General industrial, explosion-proof: Ex ia, Exd, Exd ia
Warranty period	24 months (from the date of commissioning) or 36 months (from the date of shipment), extended warranty period - upon agreement.
UPB 2 (SIL2)	Armoured glass

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
