Thermal converter multizone TPU

Thermo-converter multizone TPS, Designed to measure the temperature along the axis of: heat treatment furnaces, reactors, catalytic synthesis of petroleum products.
catalytic synthesis of petroleum products, various tanks, etc. They consist of several
thermal converters of different mounting length. They can be placed in thermowells or
separated by measurement zones.
Besides general industrial version they are manufactured with types of explosion protection
flameproof enclosure (Exd) or intrinsically safe
electrical circuit (Exi). Features

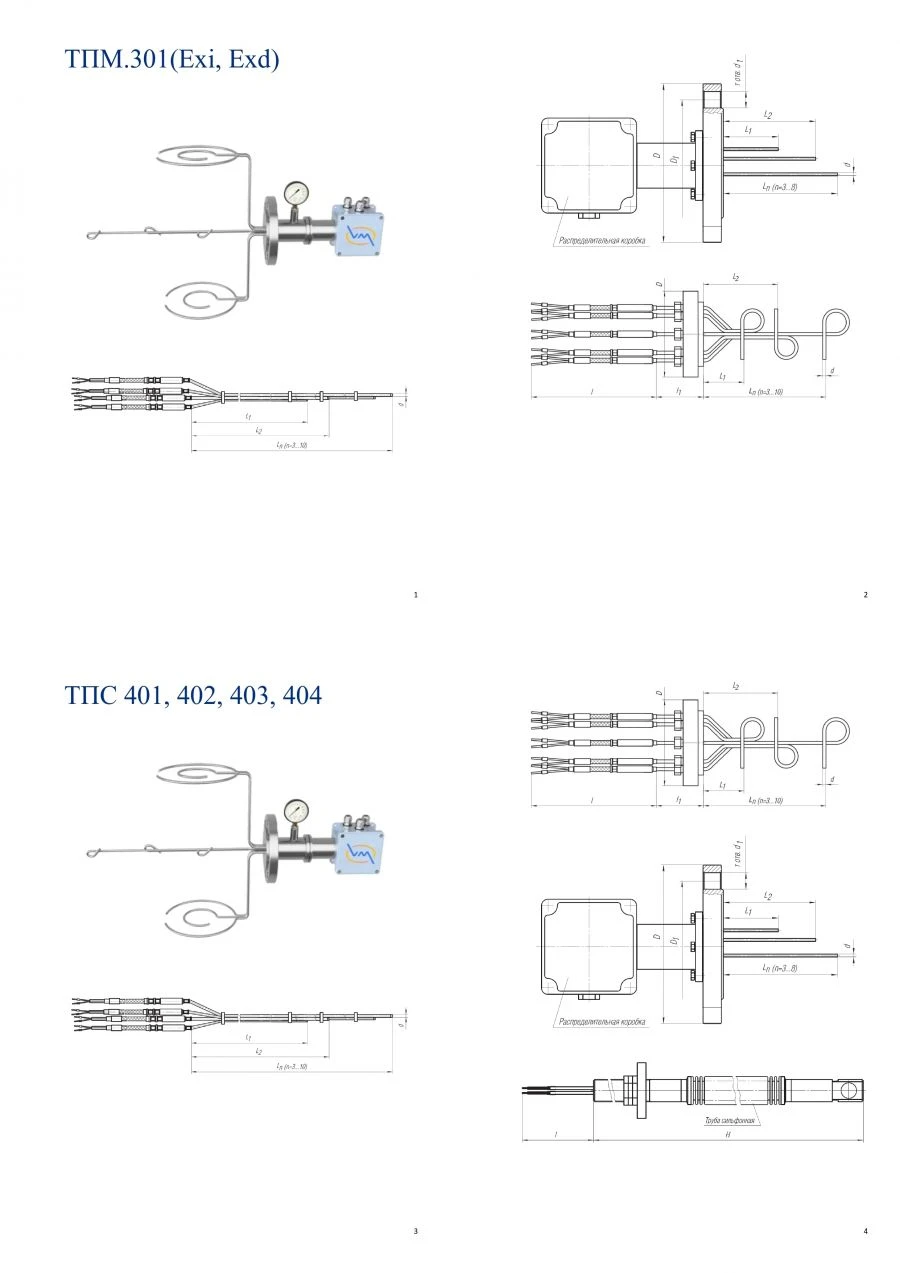

They are an assembly of resistance thermocouples of different mounting lengths on the basis of heat-resistant cable.
length on the basis of heat-resistant cable KNMSN (TPS 402, 403) or flexible bellows tube with installed inside it
tube with thermistors installed inside it (TPS 404). The number of measurement zones is equal to
number of thermal converters. They can be mounted on a common mounting flange. Connection with secondary devices is carried out with the help of
compensation wires (TPS 402, 404) or a switching box (TPS 403).
