Available for Import

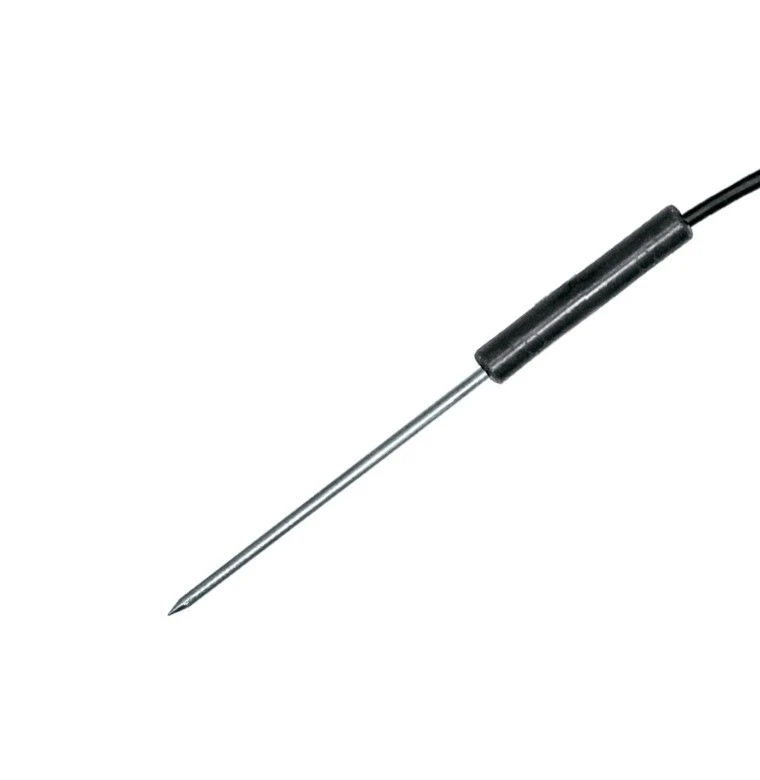

Resistance thermocouple TSPg-K1In

Temperature Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Resistance thermoconverters with a sensitive element made of platinum TSPg, design version K1In are designed to control the temperature of liquid, gaseous and bulk media, non-aggressive to the material of protective armature, including at ultra-low temperature. Thermal converters correspond to GOST 6651. Thermal converters are designed for operation at ambient air temperature from minus 60 to plus 85 C, relative humidity up to 95% at plus 35 C and atmospheric pressure from 84 to 106 kPa.

Specifications

Connection diagram 2-wire for Pt1000; 3-wire

Rated static characteristic (RSC) 50P; 100P; Pt100; Pt1000

Thermal converter type platinum

Length of mounting part 200 mm

Diameter of the mounting part 4 mm

Temperature measurement range -196...150 °C

Connection cable length 6 m

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
