Thermal resistance converter ???? (????)-Cl4-1

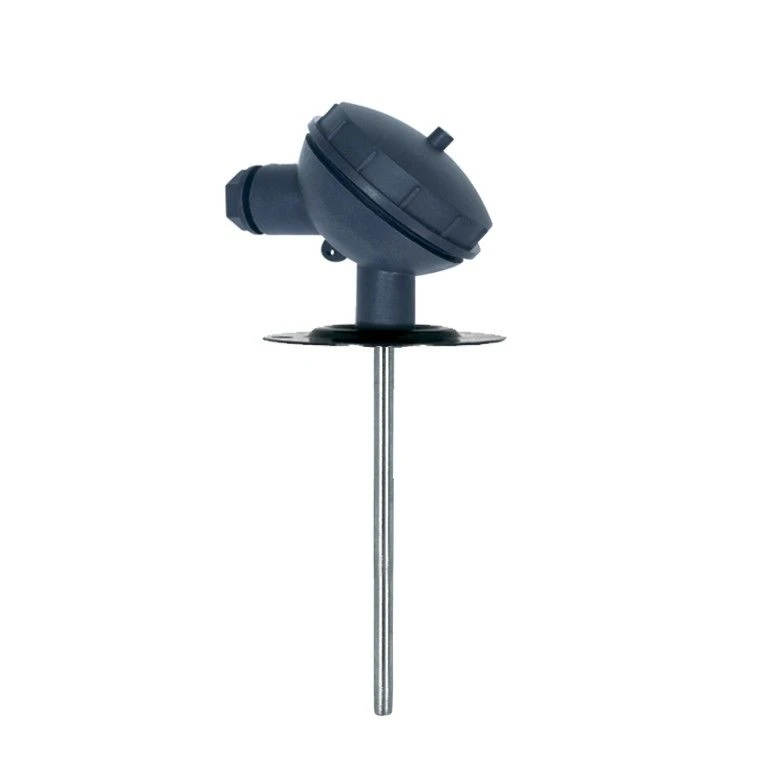

Resistance thermocouple with sensing from platinum TSPg and copper TSMg of design version Kl4-1 is designed for temperature control in air ducts and other measured working environments, chemically non-aggressive and not destroying the material of the protective housing of the sensor. Including in heating, ventilation and air conditioning (HVAC) systems. Temperature sensor for air duct Kl4-1 is equipped with a circular flange with three fixing holes and a rubber sealing ring. For installation on the duct it is enough to make four holes: for the probe and screws and fix the sensor with three self-tapping screws. Thermal converters are manufactured with probe diameter from 2 mm, which provides very low inertia.
