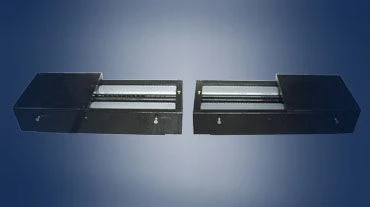

Universal modular brake bench STN 18000

Measurement and Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Universal two-speed modular brake stand STN 18000 is designed to test the brake system of all types of vehicles, including heavy-duty, with axle load up to 18 tonnes, track width 900-2900 mm and wheel diameter from 600 to 1200 mm. The recommended dimensions of the production room are 7.5×18 metres.
The test methods are fully compliant with the technical regulations of the Russian Federation "On the SAFETY OF WHEELED TRANSPORTANTS" TR TS 018/2011, GOST P 51709-2004, GOST 33997-2016. As well as the Order of the Ministry of Transport of Russia from 9 July 2020 ? 232 "On approval of the requirements for the production and technical base of the operator of technical inspection and the list of documents in the field of standardisation, compliance with the requirements of which by persons applying for an accreditation certificate of the operator of technical inspection, and operators of technical inspection ensures their compliance with the requirements of accreditation" (effective from 1 March 2021).

Specifications

Measuring range of wheel braking force (at vehicle speed 4 km/h), kN 0 to 24

Measuring range of wheel braking force (at vehicle speed of 2 km/h), kN 0 to 60

Tolerance limits of relative error of wheel braking force measurements, % ±3

Measurement range of vehicle weight per axle, kg from 0 to 9000 (if hitch loader is ordered)

Measurement range of vehicle weight per axle, kg 0 to 18000 (when ordering a pressure gauge)

Limits of permissible relative error of measurement of vehicle weight per axle, % ±3

Measuring range of force on the control, N 0 to 1000

Tolerance limits of relative error of force measurements on the control body, % ±5

Structural design Bi-block

Overall dimensions (DxWxH) of the roller block, mm, not more 2?(2010?800?440)

Overall dimensions (DxWxH) of the control cabinet, mm, not more 650?500*141

Weight of roller block, kg, not more 2x650

Type of product according to PP RF 616 Other tools and instruments for measurement, inspection and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
