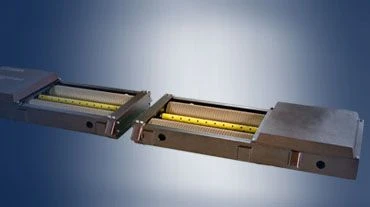

Universal modular brake bench STN 13000.02

Measurement and Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Brake stand STN 13000.02 is designed for checking the brake system of all types of cars and trucks with axle load up to 13t. Functions: - Automatic performance of measurements and calculation of parameters of brake systems according to GOST R 51709-2001 and according to the requirements of the order of the Ministry of Industry and Trade of the Russian Federation from 6 December 2011 ? 1677 "On approval of the main technical characteristics of technical diagnostics means and their list" on the following indicators: the braking force developed by the braking systems of ATC; the mass per axle of ATC; the force applied to the controls of the braking systems of ATC. - Display of measurement results and their graphic interpretation on the monitor screen and information board. - Automatic operation of the stand as a part of technical control lines with registration of the vehicle diagnostic card. - Element-by-element retrofitting of the stand with diagnostic devices in the scope of LTK.

Technical Specifications

Measuring range of wheel braking force, kN	0 to 30
Tolerance limits of relative error of wheel braking force measurements, %	±3
Measurement range of vehicle weight per axle, kg	0 to 13000
Limits of permissible relative error of measurement of vehicle weight per axle, %	±3
Measuring range of force on the control, N	0 to 1000
Tolerance limits of relative error of force measurements on the control body, %	±5
Structural design	Bi-block
Average diameter of rollers, mm	144,5
Overall dimensions (DxWxH) of the roller block, mm, not more	2?(1800?730?331)
Overall dimensions (DxWxH) of the control cabinet, mm, not more	550x460x120
Weight of roller block, kg, not more	2x455
Type of product according to PP RF 616	Other tools and instruments for measurement, inspection and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
