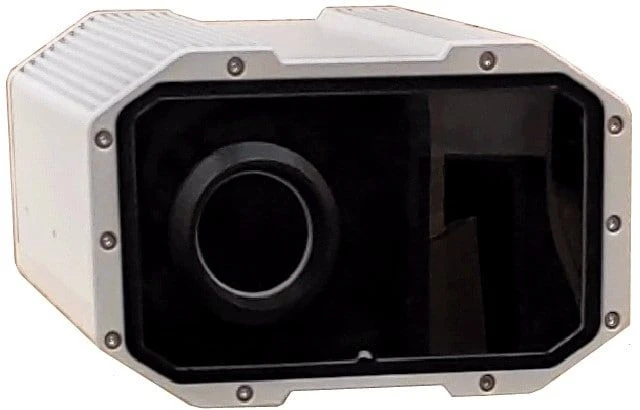

Hardware-software complex "Factor"

Measurement and Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The hardware-software complex "Factor" is designed for automatic remote measurement of vehicle speed in the control zone and on the controlled section of the road, the time of fixation of vehicles and their position. The complex is operated in fully automatic mode. The complex can measure the speed of vehicles in the control zone by radar method and video frames (optical method), and can also measure the average speed on the controlled road section by indirect method. The time of vehicle fixation and geographical coordinates of the place of vehicle fixation are determined using GNSS signal. The complex detects and recognises vehicle registration plates and records traffic violations on linear sections and intersections of the road network. Data on traffic violations are transmitted to external information systems for issuing resolutions on imposing administrative fines. AIC operates in fully automatic mode and provides the following functions.

Specifications

Limits of permissible error of vehicle speed measurement in case of daiolocation speed measurement ± 1

Limits of permissible error of vehicle speed measurement when measuring speed from video frames ± 1

Limits of permissible error of vehicle speed measurement when speed is measured at the controlled section. ± 1

Limits of permissible absolute instrumental error of synchronisation of the internal time scale of the complexes with the nation ± 1

Overall dimensions of the monoblock, not more 300x245x150 mm

Overall dimensions of video sensor B1, not more 365x175x168 mm

Dimensions of video sensor B2, not more 430x114x105 mm

Weight of monoblock without radar, not more 5500 g

Weight of video sensor B1, not more 5700 g

Weight of monoblock with radar, not more 5900 g

Weight of video sensor B2, not more 3500 g

Type of product according to PP RF 616 Other tools and instruments for measurement, inspection and testing

Radar emission operating frequency 24.15

Operating temperature range -60...65 °C

Relative humidity (at 25 degrees Celsius), not more than 98 %

Atmospheric pressure 60...110

DC supply voltage of video sensors B1, B2 18...36

Power supply voltage from DC network of the monoblock (RoE power supply is possible) 10...36 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
