Pneumatic control panel of GAKS-PU type

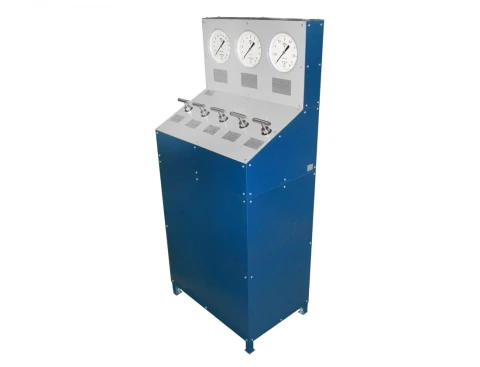

Pneumatic control panel of GAKS-PU type is designed to supply and change the pressure of compressed air to the actuators of the test bench and to the adjusted product on the test bench, where safety valves are adjusted (calibrated). The pneumatic control panel consists of a frame on which pressure gauges are installed and controls - valves are placed. Compressed air with maximum pressure is supplied to the console through a high-pressure hose. The principle of operation of the pneumatic control panel is that by opening and closing the valves in a certain order, compressed air is supplied to the output of the panel, the value of which is controlled by manometers. The pneumatic control panel is manufactured both in stationary and mobile versions.
