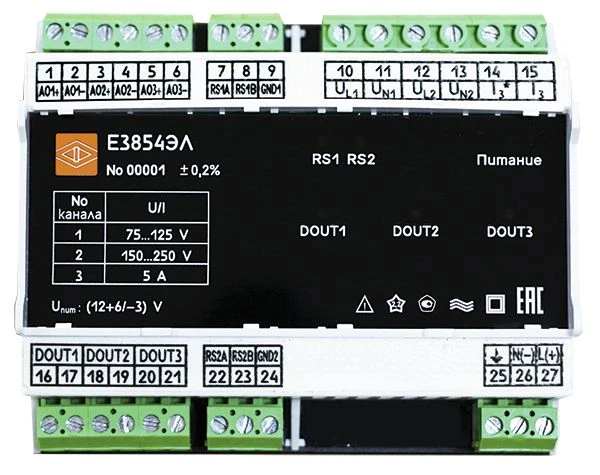

Three-channel AC current and voltage measuring transducer E3854EL

Electrical Measuring Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

E3854EL converters are designed to measure and convert electrical parameters in single-phase, three-phase AC electrical networks, as well as other AC circuits into output discrete and analogue signals, transfer the result of measurement and conversion via serial digital interface RS485.
Single-phase converters can be used in three-phase electrical networks for measurement and conversion of parameters of one phase. Three-phase converters are used for measurement and conversion of electrical parameters in three-phase three-wire and three-phase four-wire AC electrical networks.
The possibility of information exchange via RS485 interface, availability of output analogue signals and discrete outputs allow to use the converters in automated systems for various purposes. E3854EL are included in the State Register of measuring instruments of the Russian Federation No. 70318-18. Interverification interval - 10 years.

Specifications

Overall dimensions, mm 107.6x90x61

Weight, kg, not more 0,35

LED indication (single indicators) Operation of RS485 interface; operation of discrete outputs; presence of supply voltage

Input signal (for single-phase inverter) 50 V, 100 V, 125 V, 75...125 V, 250 V, 150...250 V, 500 V; 1 A, 5 A; 45...65 Hz

Input signal (for three-phase inverter) U/100, 100 V - 57.7 (100) V (phase (line) voltage), 400 V - 230 (400) V (phase (line) voltage)

Measurement time, max. 0.1 sec.

Basic error Current and voltage: ±0.2 %; frequency: ±0.01 Hz; analogue output: ±0.5 %

Galvanic isolation of input and output circuits, power supply circuits Got it

RS485 communication interface Quantity: 1, 2; Modbus RTU protocol

Analog outputs Quantity: 0, 1, 2, 3; ranges: 0...5 mA, 4...20 mA, 0...20 mA

Discrete outputs Quantity: 0, 1, 2, 3 Maximum current in signalling circuits: 0,2 A (optorele); 5 A (relay); DC voltage: 300 V, 0,2 A or 30 V, 5 A; AC voltage: 240 V, 0,2 A or 250 V, 5 A.

Power supply voltage 12VH - (12 +6/-3) VDC; 24VH - (24 +12/-6) VDC; 220VU - 90 to 264 VAC with frequency (50 ± 3) Hz or 130 to 370 VDC; 230V - 90 to 264 VAC with frequency (50 ± 3) Hz; 230V(IC) - power supply.

Consumption power, not more 3 V-A (from power supply circuit at nominal values of input signals with maximum set of analogue and discrete outputs); 0,6 V-A (on voltage measuring circuits); 0,1 V-A (on current measuring circuits); 3 V-A (on voltage measuring circuits with supply

Reprogramming Via "Configurator" program (RS485 interface)

Operating temperature range -40 to +70 °C (relative humidity 95 % at +35 °C)

Degree of protection IP30

Mounting DIN rail 35 mm

Inspection interval 10 years

Warranty period of operation 3 years

Average service life, at least 20 years

Average MTBF 200000 ?

Electromagnetic compatibility In accordance with GOST R 51317.6.5 for class A equipment

Industrial noise level In accordance with GOST 30805.22 for equipment of class A

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
