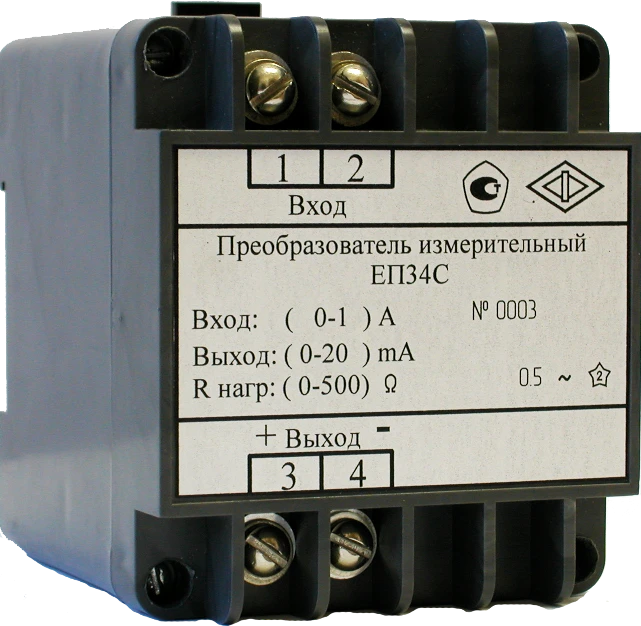

Converter measuring alternating current EP34S

Electrical Measuring Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The EP34S converter is designed for linear conversion of alternating current in electrical circuits with nominal voltage up to 660 V into a unified DC output signal. The converter is used for current control of electrical systems and installations, for automation of various objects of power engineering and in other areas of industry. The converter belongs to single-channel products. Mounting is made on a standard DIN-rail with the width of 35 mm. EP34S is included in the State Register of measuring instruments of the Russian Federation No. 32200-06. Interverification interval - 24 months (at 8-hour daily operation).

Specifications

Overall dimensions, mm 70x85,5x79

Weight, kg, not more 0,4

Input signal 0...0.5 A; 0...1 A; 0...2.5 A; 0...5 A; 0...25 A; 0...50 A; 0...100 A

Basic error ±0,5 %

Galvanic isolation of input and output circuits Got it

Analog output Quantity: 1; range: 0...5 mA; 0...20 mA

Nutrition Measuring circuit

Consumption power, not more From the input signal circuit, not more than: 1.2 V-A

Operating temperature range -30 to +50 ºC (95 per cent relative humidity at +35 ºC)

Degree of protection IP00

Mounting DIN rail 35 mm

Inspection interval 24 mo (at 8-hour daily operating time)

Warranty period of operation 4 years

Average service life, at least 10 years

Average MTBF 20000 ?

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
