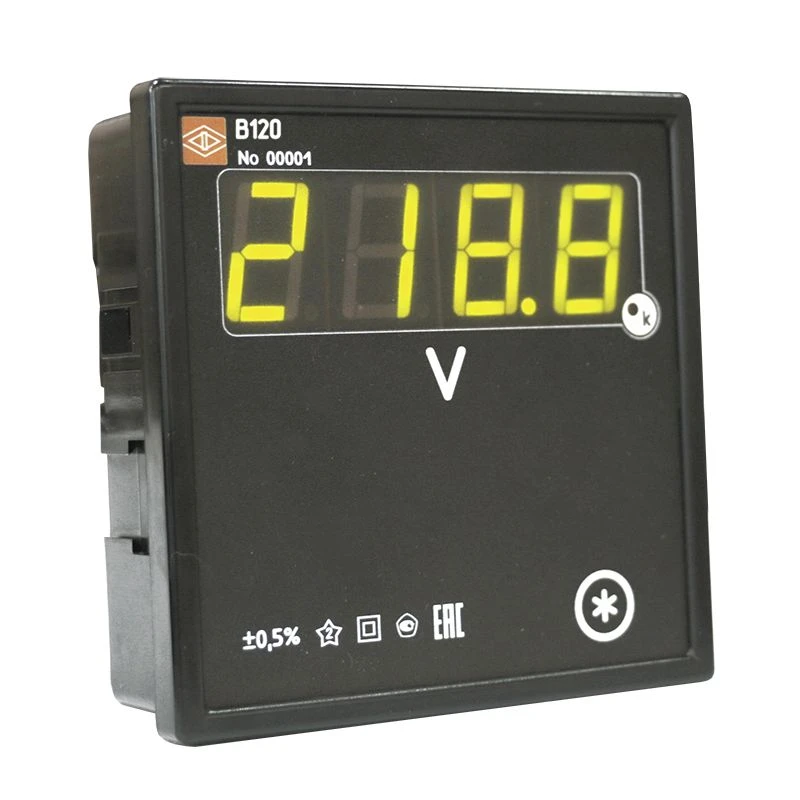

B-series panel digital voltmeter: version B120

Electrical Measuring Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Universal panel digital voltmeter B120 is designed to measure and display voltage parameters in single-phase AC and DC networks. The device is used in power engineering and other industries to control the voltage in the network and has a continuous mode of operation.

Specifications

Overall dimension, mm 120×120×47

Height of indicators, mm 26,0

Weight, kg, not more 0,2

Maximum reading range 999.9 (for DC voltage positive polarity only)

Input signal AC or DC voltage within 30...250 VAC/30...250 VDC (Connection via 100 V voltage transformer possible)

Measuring range 0 to 1.1-Unom

Measuring range of AC voltage in the frequency range 30 to 80 Hz

Limits of basic reduced error ±0.5 % or ±1.0 % or ±1.5 %

Customizing parameters Using the built-in button on the front panel

Voltage supply From measuring circuit 30...250 VAC/30...250 VDC

Consumption power, not more 2.0 V-A

Operating temperature range From -20°C to +70°C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
