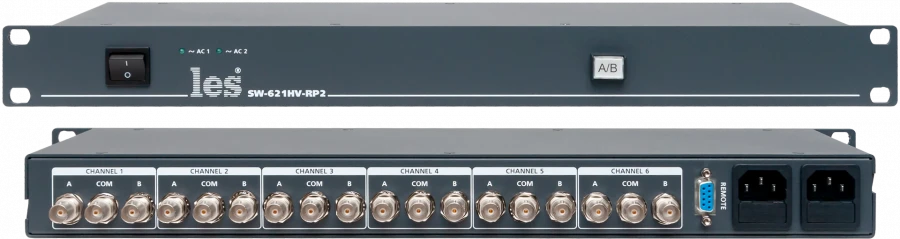

SW-621HV-RP2 - 6 channel relay switch 2 in 1 for 3G/HD/SD-SDI, DVB-ASI and CVBS signals.

Manufacturer:
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Key Highlights

  • Made in Russia - engineered for durability
  • Suitable for challenging environments
  • Lower cost of ownership than European alternatives
  • Bulk orders available with volume discounts
  • Documentation and customs clearance assistance provided
Relay switch 3G/HD/SD-SDI, DVB-ASI and CVBS signals. It consists of 6 independent switches each of which provides switching between two signal sources to the output by external GPI control command, or with the help of the button "A / B" located on the front panel of the device. Pressing the "A/B" button unconditionally switches all 6 channels. Pressed button position allows channel-by-channel (independent) switching between inputs by means of external GPI control signals. Switching of signals is asynchronous. In case of power failure, the switch outputs are connected to the main inputs "A". The switch has two power supplies to connect it to two independent network feeders. For normal operation of the device it is enough to connect at least one power supply. The front panel of the switch has mounting holes for installing it in a telecoms rack or console of standard 19" width.

Technical Specifications

Supported signal format 3G-SDI, HD-SDI, SD-SDI, DVB-ASI, CVBS
Number of independent switches (channels) in one enclosure 6
Number of inputs per channel 2
Number of outputs per channel 1
Type of signal connectors BNC
Wave impedance of the path 75 ohm
Input switching torque asynchronous
Number of GPI inputs 7
GP connector type DB-9 female
GPI input signal type level
Power supply voltage 100...240 V
Power consumption 5 W
Number of power supplies 2
Operating temperature range 5...40 °C
Overall dimensions (W-W-H) 483...44 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
