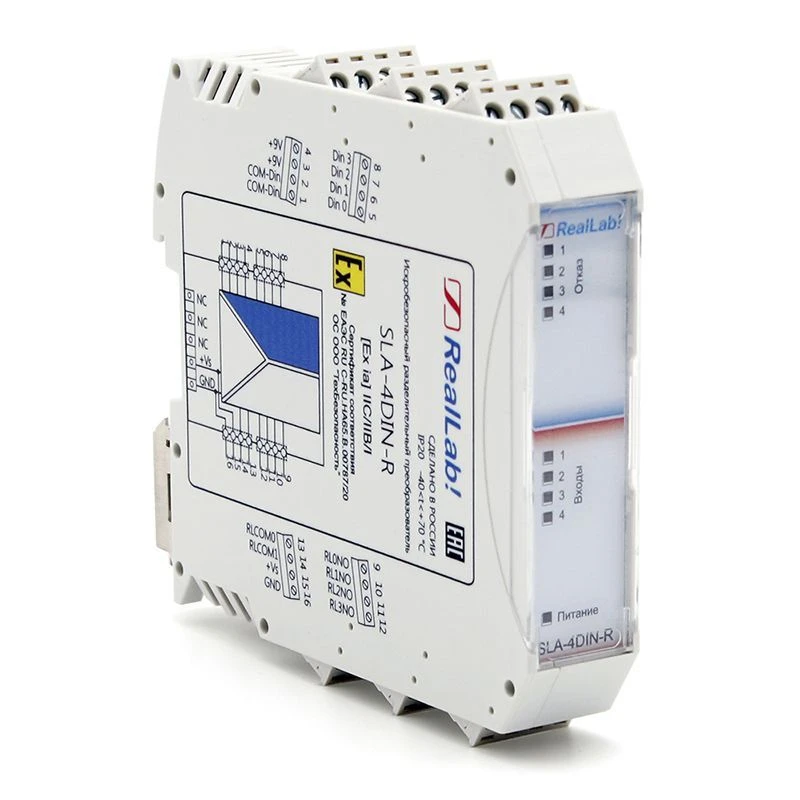

SLA-4DIN-R Intrinsically safe NAMUR binary signal divider converter with relay outputs
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Purpose: intrinsically safe transmission of discrete signals in NAMUR standard from hazardous area to explosion-proof area
Intrinsic barrier type: active with galvanic isolation
Signal type/sensor: binary signal in NAMUR standard
Number of sensors to be connected: 4
Signal parameters or connection method: 0-9 V
Relay output parameters: 4A/30V; 0.5A/250V
Number of outputs: 4
Supply voltage: 10 - 30 V
Power consumption: max. 1.5 W
Explosion protection marking: [Ex ia] IIC/IIB/I
Protection class of a person against electric shock: 01 according to GOST 12.2.007.0-75
Operating temperature range: -40°C to +70°C
Average MTBF: 100 000 h.
Average service life, not less than 12 years
Overall dimensions (HxWxH): 99.4x22.5x109
Mounting: on DIN-rail
Degree of protection: IR20 according to GOST 14254-2015
Warranty: 18 months
Intrinsic barrier type: active with galvanic isolation
Signal type/sensor: binary signal in NAMUR standard
Number of sensors to be connected: 4
Signal parameters or connection method: 0-9 V
Relay output parameters: 4A/30V; 0.5A/250V
Number of outputs: 4
Supply voltage: 10 - 30 V
Power consumption: max. 1.5 W
Explosion protection marking: [Ex ia] IIC/IIB/I
Protection class of a person against electric shock: 01 according to GOST 12.2.007.0-75
Operating temperature range: -40°C to +70°C
Average MTBF: 100 000 h.
Average service life, not less than 12 years
Overall dimensions (HxWxH): 99.4x22.5x109
Mounting: on DIN-rail
Degree of protection: IR20 according to GOST 14254-2015
Warranty: 18 months
Specifications
Weight, not more:
300 g
Overall dimensions (HxWxH):
99.4x22.5x109. mm
Average service life, at least
B1/B8 2100/900 MHz a
Average MTBF:
100000
Guarantee:
18
Type of product according to PP RF 616
Other tools and instruments for measurement, inspection and testing
