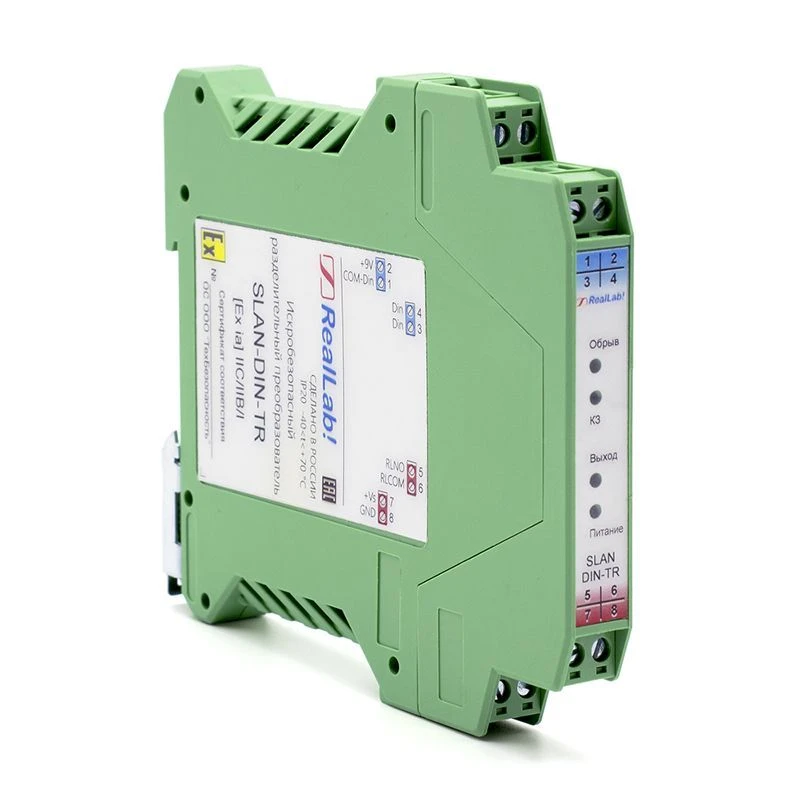

SLAN-DIN-TR Intrinsically safe NAMUR binary signal divider converter with opto relay output

Purpose: intrinsically safe transmission of discrete signals in NAMUR standard from hazardous area to explosion-proof area
Intrinsic barrier type: active with galvanic isolation
Signal type/sensor: binary signal in NAMUR standard
Number of sensors to be connected: 1
Signal parameters or connection method: 0-9 V
Number of optorelay outputs: 1
Parameters of optorelay outputs: 100 mA / 100 V
Galvanic isolation: input isolation, output isolation - 2500 V
Types of protection: against incorrect polarity connection of the power supply source
Power supply voltage: 10-30 V
Power consumption: not more than 2 W
Explosion protection marking: [Ex ia] IIC/IIB/I
Operating temperature range: -40°C to +70°C
Average MTBF: 120 000 hrs.
Average service life, not less than: 12 years
Overall dimensions (HxWxH): 99x12.6x113.6
Mounting: on DIN-rail
Degree of protection: IR20 according to GOST 14254-2015
Warranty: 18 months
