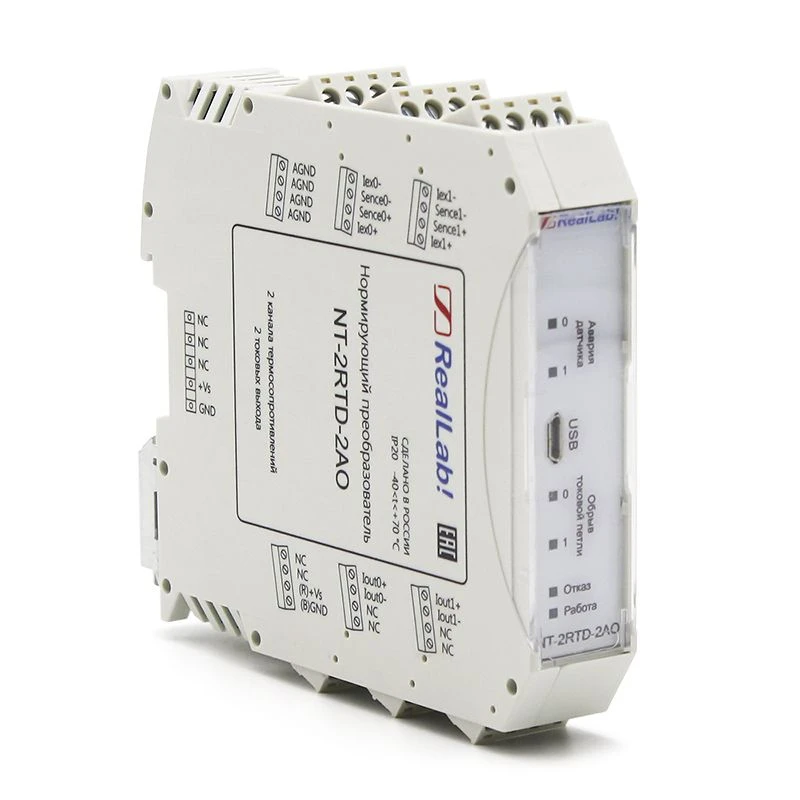

NT-2RTD-2AO Thermocouple signal conditioning converter

Purpose: conversion of signals of thermal resistance converters (thermistors) into active current signals 4...20 mAconnection: 2 channels of analogue input of signals of thermistors of types Pt50, Pt100, Pt500, Pt1000, 50P, 100P, 500P, 1000P, Cu50, Cu100, Cu500, Cu1000, 50M, 100M, 500M, 1000M, 100N, 500N, 1000N; 2 channels of analogue current output 4...20 mA connection diagrams: 2 sensors on 4, 3 or 2-wire connection schemeDigit capacity: 16 digits (ADC), 12 digits (DAC)Conversion error: not more than 0,1 %Time of establishment of the output signal after a jump change of the input signal: not more than 0,4 sGalvanic isolation:input, channel isolation of outputs, power supply - 2500VTemperature:operating temperature range from -40C to +70CConfiguration: via USB port, NTConfig softwarePower supply voltage: from 10 to 30VPower consumption: not more than 3WDimensions (HxWxH): 109x22,5x113Warranty: 18 months
