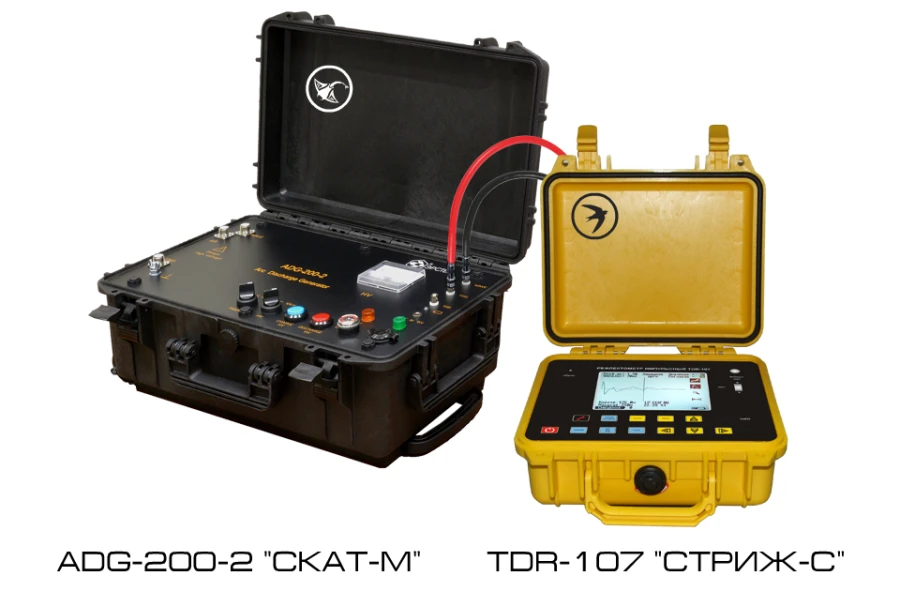

Set of remote localisation TDR-107 STRIZh-S + ADG-200-2 "SKAT-M"

Electrical Measuring Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Purpose of the set: Realisation of modern methods of ARM in a small-sized complex with autonomous power supply. Preliminary localisation of both low-resistance and high-resistance damages by the following flameless methods of WMD: pulse method (pulse reflectometry method, TDR) pulse-arc method (method of reflection from short-term electric arc, ARM). Features a wide range of realisable flameless methods of ARM; small size and weight - the whole complex easily fits in the boot of a car and is moved to the place of connection manually by a team of 2 people; autonomous power supply; shockproof and waterproof performance.

Technical Specifications

Weight of ADG-200-2 generator	Not more than 17kg
Overall dimensions of generator ADG-200-2	570x350x200 mm
ADG-200-2 operating temperature range	From -20 C to +40 C .
Power supply of arc discharge generator ADG-200-2	Autonomous - internal battery 12 V , 12 Ah.
Maximum permissible pulse voltages on all low-voltage connectors intended for connection to the OTDR, not to	At the TDR connector - 60V;at the WAVE connector - 120V;at the TRIG connector - 20V.
Maximum stored energy for ADG-200-2	200 J.
ADG-200-2 charge modes	Direct cable charge to breakdown (AUTO), charge the built-in capacitor (MANUAL).
Output voltage range ADG-200-2	0 to 10 kV
Features of arc discharge generator ADG -200-2	Fully autonomous power supply,Small size - the complex fits freely in the boot,light weight.
Measurement methods for ADG 200 generator	Pulse-arc method - IDM (ARM, short-time arc method),oscillating current discharge method - ICD (ICE, current wave method).
Weight of the device with the battery.	Not more than 2,5 kg.
Overall dimensions.	270x246x124 mm
Time of continuous work from a rechargeable battery.	Not less than 8 hrs.
Interface with PC	RS-232 COM port.
Instrumental error of distance measurement.	0.04% to 0.4% of the measurement subrange (1 m to 20 m, at CG=1.50).
Distance measurement subranges.	From 0 to 50000 m.
Range of matched resistances.	25 ohms to 600 ohms
Distance measuring range	0 to 50000 m (0 to 500 µs).
Measurement modes	Pulsed (TDR),pulse-arc (Arc-Reflection).

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
