Available for Import

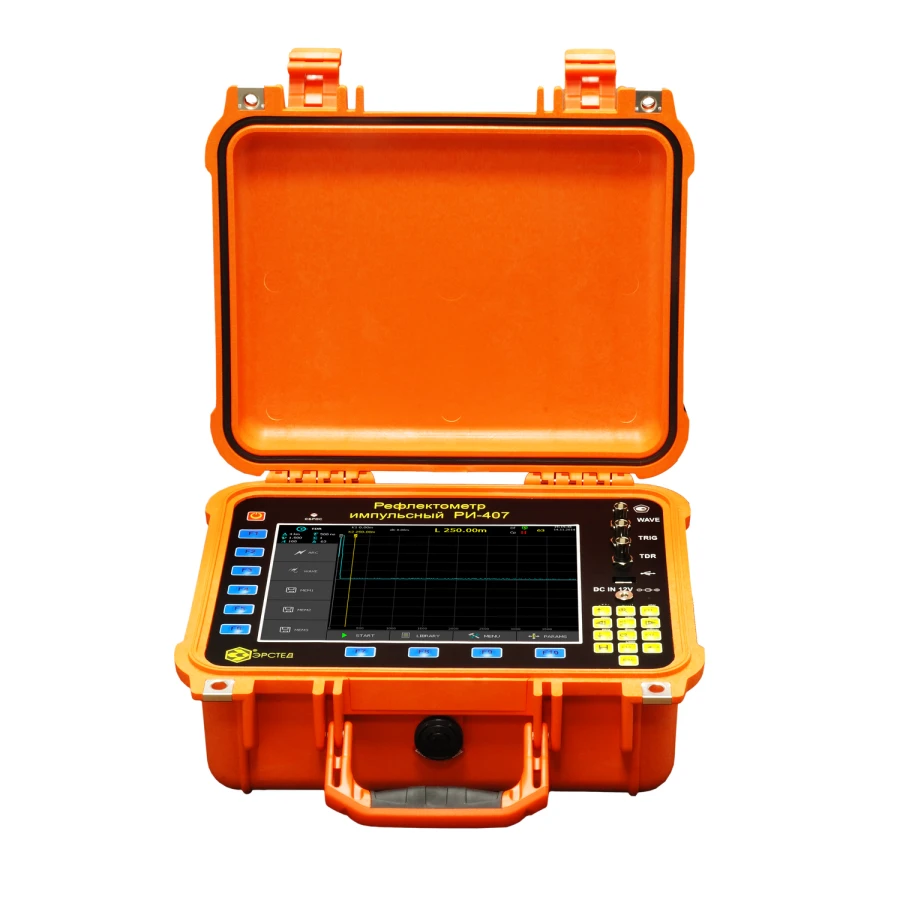

Protected pulse OTDR RI-407 "STRIZH-C"

Electrical Measuring Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Impulse reflectometer RI-407 is used for control during laying and operation of the following types of cable lines: power cables (ASB, VVG, SIP, etc.) overhead cable lines copper-core communication cables (TPP, MKS, etc.) signalling and signalling cables.etc.) signalling and control cables (SBPZAVpShp, etc.) computer networks (SCS, etc.) television and radio frequency cable lines (RK-75, etc.) to determine the length of the cable during its production, storage and trade. Pulse Reflectometer RI-407 realises the following measurement methods: Pulse Method (Time Domain Reflectometry - TDR) Pulse-Arc Reflection Method* (Arc Reflection Method - ARM) Oscillating Current Method* (Impulse Current Method - ICE). Impulse Current Method - ICE) DECAY travelling wave method* (DECAY travelling wave method) *when used in conjunction with high-voltage pulse generators (HVG), for example: ADG-200-2 SCAT-M.

Technical Specifications

Measurement modes	Pulsed (TDR), pulse-arc (ARM), voltage wave (Decay), current wave (ICE).
Distance measuring range	0 to 256000 m (0 to 2560 µs)
Setting range of the shortening ratio	1.000 to 10.000, in increments of 0.001
Interface with PC	Via external USB-Flash drive
Overall dimensions	152x339x295 mm
Weight of the device with battery	Not more than 4kg
Display	Colour TFT 10" (800x600 pixels)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
