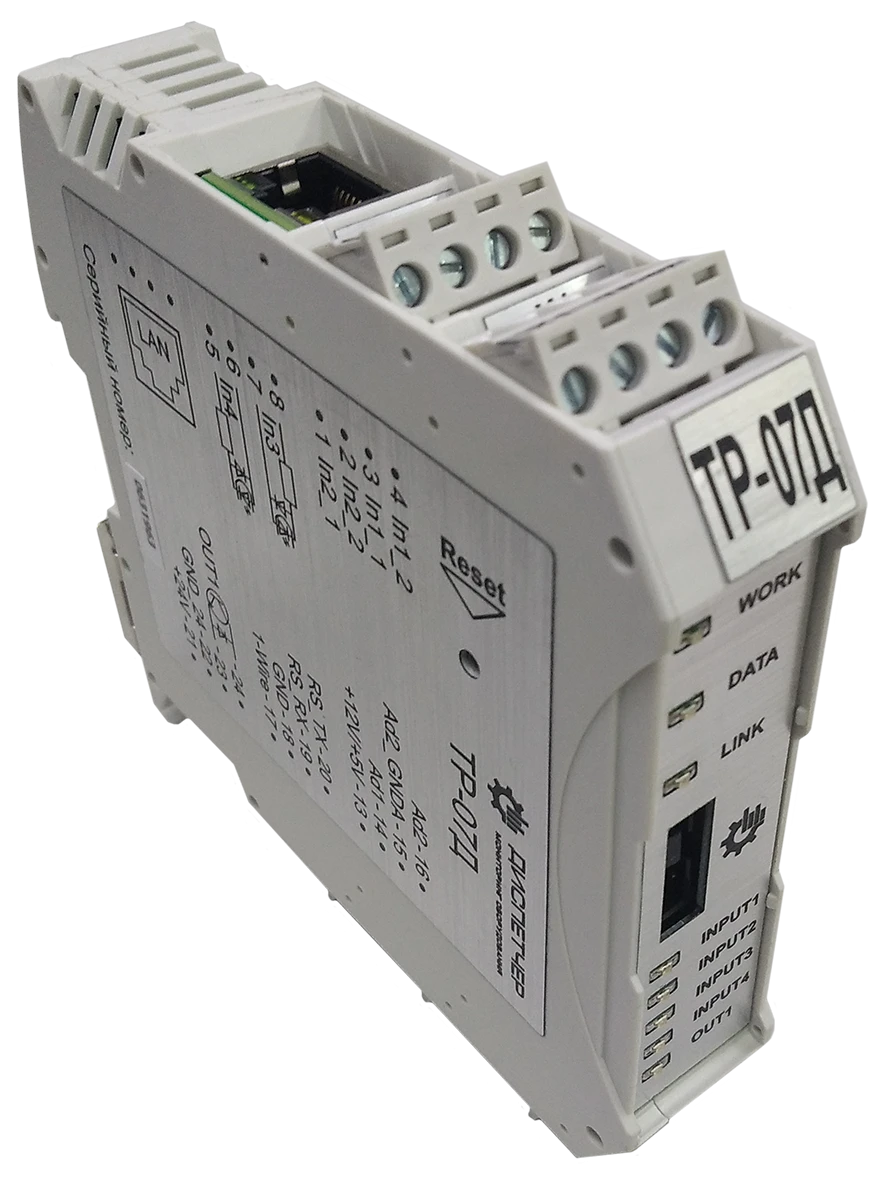

Terminal recorder TR-07D

Terminal-recorder TR-07D (hereinafter referred to as terminal) is designed for monitoring of industrial equipment operation. The terminal allows to automatically collect discrete and analogue data on equipment operation and transfer them to the AIS Dispatcher server. The terminal can work both individually and together with additional units: expansion unit BR-03D (up to 4 units), power measurement unit BM-03D (one unit) or BM-04D (up to 4 units), discrete input unit BDV-01D (up to 4 units), and vibration unit VC-03 (up to 4 units). Information exchange between the terminal and additional units is carried out via RS-485 interface. Modular expandable system, allows flexible and efficient use of these blocks, determining their optimum number for monitoring of specific equipment.
