Set of assemblies and parts of steam turbine K-210-130-3M4 for modernisation of CND of unit No.5 "Primorskaya GRES".

Steam Turbine Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

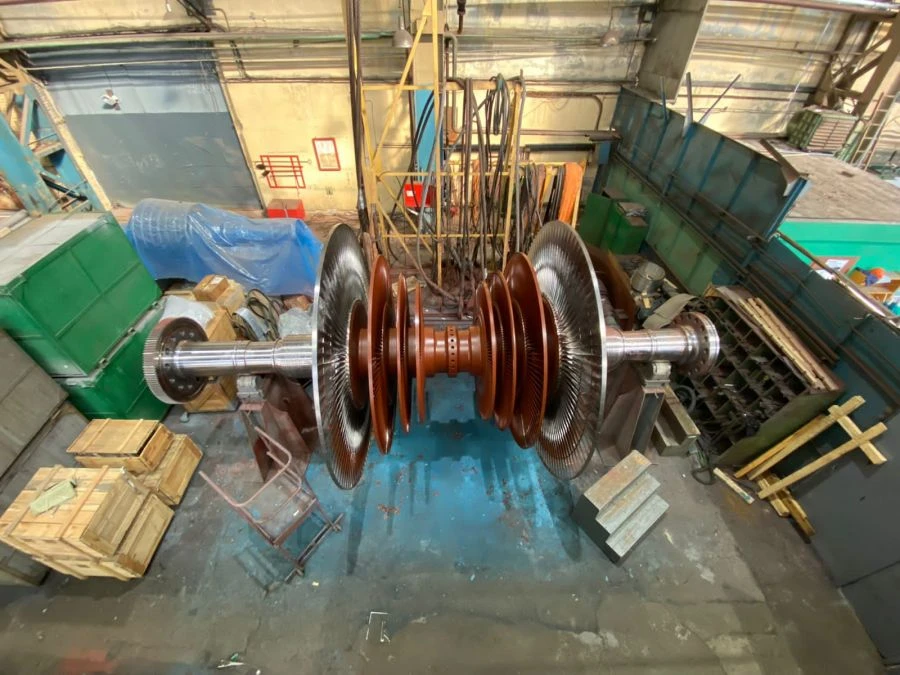

Turbine parts of CND modernisation kit K-210-130-3M4 is a flowing part of low pressure cylinder (LPC) of steam turbine K-210-130-3M4, which converts potential energy of steam into mechanical work and is intended for generator drive. The set of modernisation of CND K-210-130-3M4 consists of the following main parts: - stator parts of the flowing part; - one-piece forged low-pressure rotor (LPR) resting on two sliding bearings. - mounting accessories and spare parts.
High indicators of steam turbine efficiency and reliability after application of the modernisation kit are ensured by: - aerodynamic experimental tests of blades, confirming their reliability and efficiency; - smooth meridial contours of the flow part; - new improved designs of seals; - introduction of modern progressive methods of design and technologies and equipment..

Technical Specifications

Absolute pressure of fresh steam upstream of stop valves	12.75 MPa
Temperature of fresh steam upstream of CVD stop valves	540 °C
Mass flow rate of fresh steam at rated mode	173.03
Maximum mass flow rate of fresh steam	186.11
Superheated vapour temperature	540 °C
Condenser pressure	3.7

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
